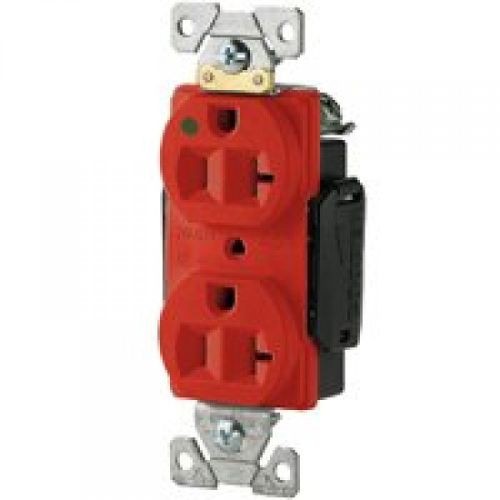

EATON Arrow Hart™ Eaton Wiring Devices AH8300RD AH8300 Duplex Illuminated Premium Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
EATON Arrow Hart™ Eaton Wiring Devices AH8300RD AH8300 Duplex Illuminated Premium Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
SKU: EAGAH8300RD
Manufacturer Part Number: AH8300RD
UPC: 032664705076
Short Description
Features
- Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
- Exclusive five-leaf solid brass line contacts provides consistent performance and superior plug retention (duplex only)
- 0.05 in (1.27mm) solid brass mounting strap with non-riveted, integral one-piece grounding system for highest durability-assures superior ground integrity under heaviest use (duplex only)
- High impact and chemical resistant nylon face
- Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- All terminal and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Long, broad mounting strap helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Screw-Catch feature on duplex devices speeds mounting of wallplates
- Flush mounting
- Glass filled nylon base
- Screw connection
- 2000 V dielectric strength
- UL 94 V-2 flammability rating
- Illuminated
- 14 - 10 AWG
Specification
| Grade | Hospital |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=wVyZtLMLREA |
| Amperage Rating | 20 A |
| Catalog ID | EAGAH8300RD |
| Color | Red |
| Dimensions | 4.19 in H x 1.3 in W x 0.82 in D |
| Temperature Rating | -4 to 194 deg F |
| Terminal Type | Back and Side Wired |
| Voltage Rating | 125 VAC |
| Standard & Approvals | CSA Certified, cULus Listed, NOM Certified, RoHS Complaint, UL Listed |
