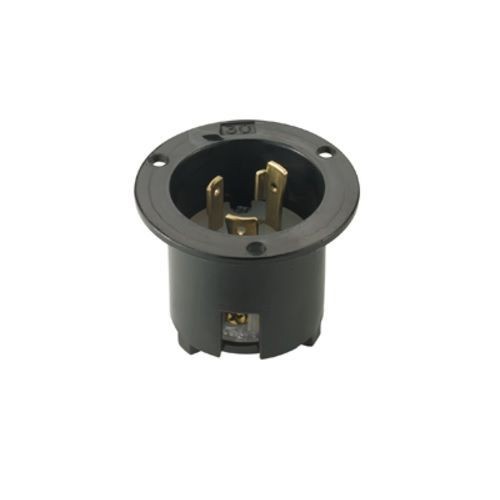

EATON Arrow Hart™ Eaton Wiring Devices AHL530FI Locking Flanged Inlet, 125 VAC, 30 A, 2 Poles, 3 Wires, Black/White
EATON Arrow Hart™ Eaton Wiring Devices AHL530FI Locking Flanged Inlet, 125 VAC, 30 A, 2 Poles, 3 Wires, Black/White
SKU: AHWAHL530FI
Manufacturer Part Number: AHL530FI
UPC: 040893680583
Documents
Short Description
Features
- Mounting holes interchangeable with competitive units
- Back wire terminal clamps for easy secure wiring
- Individual wiring compartments with tapered channel for easy insertion of wires
- Nylon flanged housing/interior body, polycarbonate terminal retainer
- Grounding
- 14 AWG
Specification
| Grade | Industrial |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA L5-30 |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP |
| Amperage Rating | 30 A |
| Color | Black/White |
| Temperature Rating | -40 to 80 deg C |
| Terminal Type | Screw |
| Voltage Rating | 125 VAC |
| Standard & Approvals | cULus Listed, RoHS Complaint |
| Dimensions | 2.87 in Dia x 2.19 in H |
| Cord Diameter | 0.38 - 1.00 in |
| Catalog ID | AHWAHL530FI |
