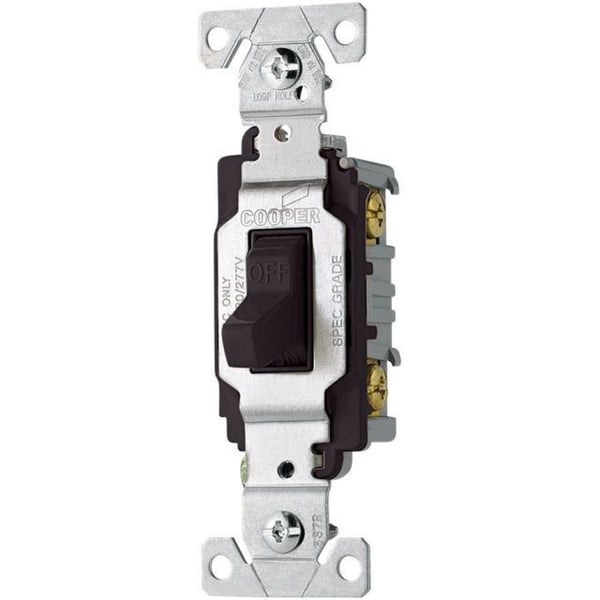

EATON Arrow Hart™ CS120BK-SP-L Heavy Duty Specification Grade AC Toggle Switch, 120/277 VAC, 20 A, 1/2 hp Power Rating
EATON Arrow Hart™ CS120BK-SP-L Heavy Duty Specification Grade AC Toggle Switch, 120/277 VAC, 20 A, 1/2 hp Power Rating
SKU: EAGCS120BK
Manufacturer Part Number: CS120BK
UPC: 032664555008
Documents
Short Description
Features
- Patent pending spring cup toggle design for robust actuation
- Terminals accept up to No. 10 AWG solid or stranded
- 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
- Terminal screws backed out and ready for wiring
- Tri-combo head mounting and terminal screws ease installation
- Color-coded strap marking identifies amperage
- Specification grade
- 14 - 10 AWG terminal accommodation
- Heavy duty
- Nylon toggle
- 2.38 in L back
- 3.28 in L screw to screw
- Compact toggle
- Side wire connection
- UL 94-V0 Flammability
Specification
| Material | PVC |
|---|---|
| Mounting | Wall |
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator | Toggle |
| Amperage Rating | 20 A |
| Color | Black |
| Power Rating | 1 hp/2 hp |
| Terminal Type | Screw |
| Voltage Rating | 120/277 VAC |
| Application | Commercial |
| Standard & Approvals | CSA Certified to C22.2 No. 111 File No. 10016 (6241-05), cULus Listed to UL 20 File No. E18704, RoHS Compliant, UL Verified to Federal Specification WC-896G |
| Operating Cycles | 50000 |
| Environmental Conditions | -40 to 65 deg C |
| Dimensions | 1.13 in W x 0.87 in D |
| Catalog ID | EAGCS120BK |
