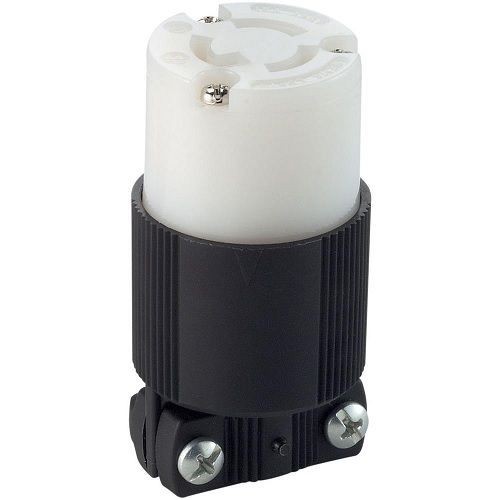

EATON Arrow Hart™ Safety Grip™ Eaton Wiring Devices CWL515C Straight Safety Grip Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White

Selected EATON Arrow Hart™ Safety Grip™ Eaton Wiring Devices CWL515C Straight Safety Grip Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
EATON Arrow Hart™ Safety Grip™ Eaton Wiring Devices CWL515C Straight Safety Grip Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White

Documents

Short Description

Industrial Specification Grade Locking Devices - Safety Grip Plug & Connector 15A, 125V/AC NEMA L5-15 2-Pole/3-Wire. Superior design and performance make Arrow Harts devices the ideal choice for industrial applications. Available in a wide range of NEMA and Non-NEMA configurations.

Features

  • Neoprene gasket seals cord hole from dust and debris
  • Dual range cord grip for solid cord clamping
  • Back wire terminal clamps for easy secure wiring
  • Individual wiring compartments with tapered channel for easy insertion of wires
  • Clear cover over wiring compartments allow easy inspection of wiring terminations
  • Safety grip connector
  • Nylon outer shell/interior body
  • 16 - 12 AWG

Specification

Grade
Industrial
Material
Nylon
NEMA Rating
NEMA L5-15
Number Of Poles
2
Number of Wires
3
Temperature Rating
-40 to 75 deg C
Terminal Type
Screw
Voltage Rating
125 VAC
Standard & Approvals
CSA C22.2 no. 42 File LR7087, cUL File E2369 Listed, Federal Specification WC-596-F, RoHS Complaint
Amperage Rating
15 A
Dimensions
1.5 in Dia x 2.88 in H
Color
Black/White
Cord Diameter
0.25 - 0.66 in
