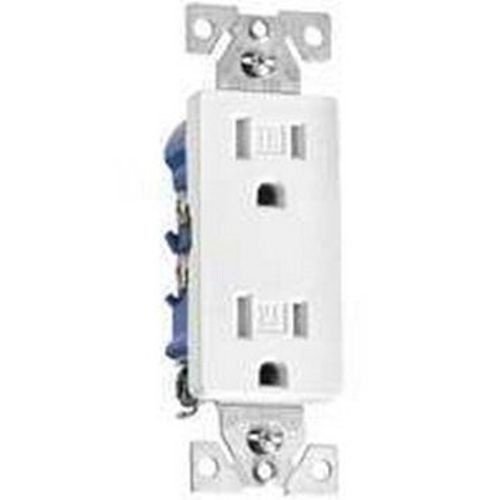

EATON Eaton Wiring Devices TR1107W-BOX TR1107 Decorator Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
EATON Eaton Wiring Devices TR1107W-BOX TR1107 Decorator Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
SKU: EAGTR1107W-BOX
Manufacturer Part Number: TR1107W-BOX
UPC: 032664665189
Documents
Short Description
Features
- Provides compliance with 2014 NEC Article 406.12
- Durable impact-resistant thermoplastic face and back body is virtually unbreakable
- TR designation provides visual identification that device has tamper resistant shutters preventing the insertion of foreign objects
- Terminal screws are backed out and ready to wire
- Extra long and extra-wide mounting straps
- Side-wire terminals accept up to #10 solid or stranded wire
- Grounding
- Flush mounting
- Screw connection
- 2000 V dielectric strength
- Impact resistant thermoplastic
- 14 - 10 AWG
Specification
| Grade | Standard |
|---|---|
| Material | Thermoplastic |
| NEMA Rating | NEMA 5-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=wVyZtLMLREA |
| Amperage Rating | 15 A |
| Catalog ID | EAGTR1107W-BOX |
| Color | White |
| Dimensions | 4.193 in H x 1.015 in D |
| Temperature Rating | -4 to 158 deg F |
| Terminal Type | Back and Side Wired |
| Type | Decorator |
| Voltage Rating | 125 VAC |
| Standard & Approvals | CSA Certified, cULus Listed, NOM/ANSI Certified, UL Listed, RoHS Complaint |
