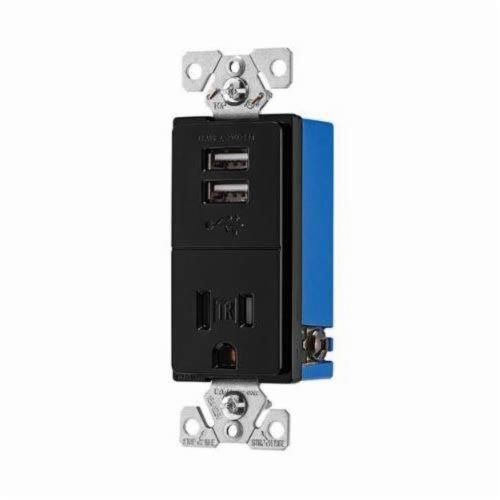

EATON Eaton Wiring Devices TR7740BK-BOX Combination Grounding USB Charger With Tamper-Resistant Single/Duplex Decorator Receptacle, 15 A at 125 VAC, 2 Poles, 3 Wires, Black

Selected TR7740BK-BOXEATON Eaton Wiring Devices TR7740BK-BOX Combination Grounding USB Charger With Tamper-Resistant Single/Duplex Decorator Receptacle, 15 A at 125 VAC, 2 Poles, 3 Wires, Black
TR7740BK-BOXEATON Eaton Wiring Devices TR7740BK-BOX Combination Grounding USB Charger With Tamper-Resistant Single/Duplex Decorator Receptacle, 15 A at 125 VAC, 2 Poles, 3 Wires, Black

Short Description

The Combination USB Charger with Tamper Resistant Receptacle quickly and easily provides consumers with the ability to charge their electronic devices directly from a standard outlet without bulky adapters that can be lost or misplaced. Additionally, they contain UL approved Tamper Resistant Shutters to ensure compliance with the 2011 NEC Article 406.12 that requires all 125V receptacles in dwelling units to be Tamper Resistant.

Features

  • Compact design features standard AC receptacle with dual USB charging ports
  • USB ports charge any electronic device that is capable of being charged via a 5V power adapter
  • LED indicator light notifies user that device is charging
  • Tamper Resistant Shutters provide compliance with 2011 NECĀ® Article 406.12 that states that all 15A, 125V receptacles installed in dwelling units must be tamper resistant
  • Replaces a standard duplex receptacle
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Thermoplastic top and back-body are virtually unbreakable to deliver years of durable performance
  • Ultrasonic welding and integrated construction of strap and body provide superior ground integrity even under heavy use
  • Durable injection molded housing and PVC resin comply with UL94 5V flammability rating
  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Convenient patented built-in wire strippers speeds installation
  • Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
  • Triple wipe blade contacts and double wipe ground contacts to insure long-term plug retention
  • Tri-combo screw heads offer greater installation flexibility
  • 125 VAC dielectric strength
  • Nylon, glass filled nylon insulation
  • 15A 125V NEMA 5-15R receptacle rating
  • Indoor use

Specification

Grade
Standard
Insulation
Nylon
Material
Nylon
Mounting
Flush
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=WC7FcFUNxAM
Catalog ID
EAGTR7740BK-BOX
Color
Black
Connection
Screw
Electrical Rating
125 VAC 15 A, 5 VDC 0.7 A
Environmental Conditions
-20 to 60 deg C
Size
1.3 in W x 1.07 in D x 4.19 in H
Type
Duplex
USB Quantity
2
USB Rating
5 VDC 700 mA
Wire Size
14 to 12 AWG
Standard & Approvals
cULus Listed, NOM Certified, RoHS Compliant, UL L1310 Listed, UL 498 Listed
Wiring Method
Back and Side Wire
