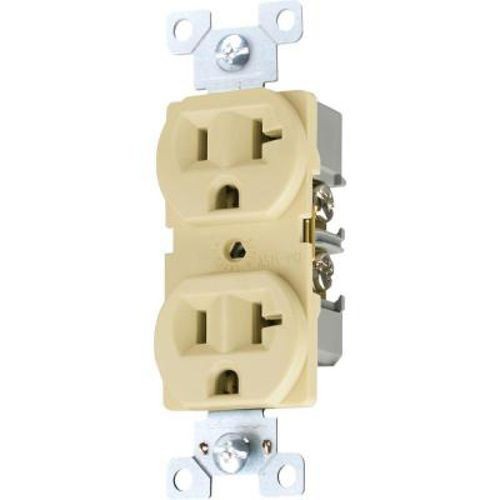

EATON Arrow Hart™ Eaton Wiring Devices TRBR20V-BXSP TRBR Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
EATON Arrow Hart™ Eaton Wiring Devices TRBR20V-BXSP TRBR Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU: EAGTRBR20V-BXSP
Manufacturer Part Number: TRBR20V-BXSP
UPC: 032664668746
Short Description
Features
- Provides compliance with 2014 NEC Article 406.12
- Durable impact-resistant thermoplastic face and back body is virtually unbreakable
- 'TR'' designation provides visual identification that device has tamper resistant shutters preventing the insertion of foreign objects
- Terminal screws are backed out and ready to wire
- Extra long and extra-wide mounting straps
- Side-wire terminals accept up to #10 solid or stranded wire
- Flush mounting
- Indoor environmental conditions
- 2000 V dielectric strength
- UL 94 V-2 flammability rating
- 14 - 10 AWG
Specification
| Grade | Commercial |
|---|---|
| Material | PVC |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=wVyZtLMLREA |
| Amperage Rating | 20 A |
| Catalog ID | EAGTRBR20V-BXSP |
| Color | Ivory |
| Dimensions | 4.19 in H x 1.24 in W x 0.87 in D |
| Temperature Rating | -4 to 140 deg F |
| Terminal Type | Back and Side Wired |
| Voltage Rating | 125 VAC |
| Standard & Approvals | CSA Certified, cULus Listed, NOM Certified, RoHS Complaint, UL Listed |
