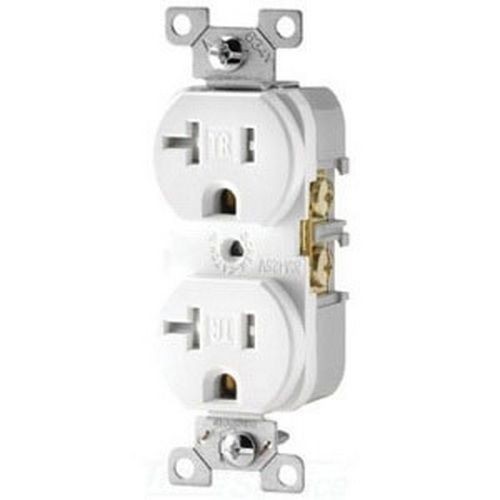

EATON Arrow Hart™ Eaton Wiring Devices TRCR20W TRCR Duplex Heavy Duty Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
EATON Arrow Hart™ Eaton Wiring Devices TRCR20W TRCR Duplex Heavy Duty Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU: EAGTRCR20W
Manufacturer Part Number: TRCR20W
UPC: 032664722837
Features
- Heavy duty grade receptacles are designed and built for heavier use and feature enhanced ground contacts
- Durable impact-resistant thermoplastic face and back body is virtually unbreakable and also chemical resistant
- Side-wire terminals accept up to #10 AWG solid wire
- Screw-catch feature on duplex devices speeds mounting of wallplates
- Galvanized steel wrap-around mounting strap for superior assembly security
- Duplex and decorator devices feature automatic grounding system that eliminates the need for bonding jumper in grounded metal enclosures and provides a redundant measure of ground continuity where a jumper is used
- Flush mounting
- Screw connection
- Indoor environmental conditions
- 2000 V dielectric strength
Specification
| Grade | Commercial |
|---|---|
| Material | PVC |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -4 to 140 deg F |
| Terminal Type | Side Wired |
| Voltage Rating | 125 VAC |
| Amperage Rating | 20 A |
| Color | White |
| Dimensions | 4.19 in H x 1.1 in D |
| Standard & Approvals | cULus Listed, NOM Certified, UL Listed, RoHS Complaint |
