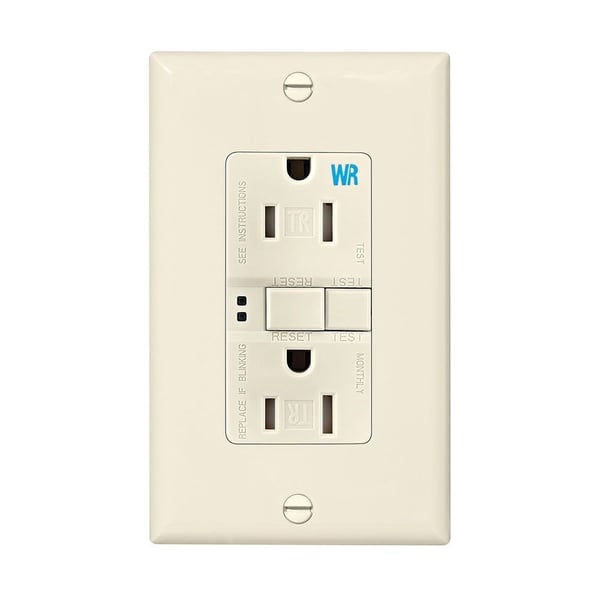

Eaton Wiring Devices TWRSGF20V TWRSGF Tamper/Weather-Resistant Duplex GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Eaton Wiring Devices TWRSGF20V TWRSGF Tamper/Weather-Resistant Duplex GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
SKU: EAGTWRSGF20V
Manufacturer Part Number: TWRSGF20V
UPC: 032664743025
Documents
Features
- Meets and exceeds 10 kA short circuit testing and underwriters laboratories (UL) 2006 UL943 safety standards
- Performs periodic self tests to ensure integrity of GFCI protection if no ground fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
- Tapered backwire openings handle multiple wire sizes and types for applications up to 10 AWG solid or stranded wire
- When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
- Test and reset buttons are color matched to provide superior aesthetics
- Longer, wider "bridge" strap provides 40% more contact area with wallboard, virtually eliminating floating installations
- Exclusive built-in wire stripper provides fast stripping of wire without tools
- Line-load miswiring protection GFCIs will not provide power downstream when wired incorrectly
- Tri-combo head terminal and mounting screws
- Withstands 2000V per UL498 dielectric voltage
- Full rated current current interrupting
- Maximum 30 deg C after 100 cycles of overload at 150 percent of rated current (DC) temperature rise
- 0.025 seconds (class A) trip time
- Meets and exceeds 10 kA short circuit testing
- 20 A maximum interrupting capacity
- 14 to 10 AWG terminal accommodation
- Thermoplastic, polypropylene top housing, thermoplastic, PVC bottom housing
- 0.047 in thick steel, zinc plated strap, 0.03 in thick brass line contacts
- Brass/nickel-plated steel terminal screw, brass plated steel terminal clamps, ground screw green
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Grade | Specification |
| Material | Polypropylene |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=jwMf03OS_TE&t=5s |
| Amperage Rating | 20 A |
| Catalog ID | EAGTWRSGF20V |
| Color | Ivory |
| Dimensions | 4.2 in H x 1.68 in W x 1.27 in D |
| Series | TWRSGF |
| Temperature Rating | -35 to 66 deg C |
| Terminal Type | Back and Side Wire |
| Type | Tamper and Weather Resistant |
| Voltage Rating | 125 VAC |
| Standard & Approvals | cULus Listed, NOM Certified |
