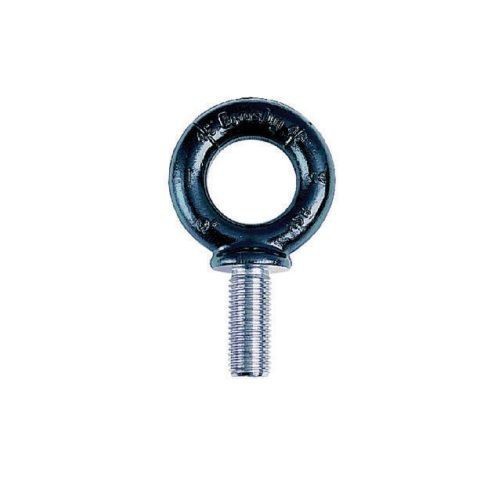

Crosby® 9900217 S-279 Full Threaded Machinery Shoulder Eye Bolt, 1/2-13, 1.53 in L Shank, Forged Steel
Crosby® 9900217 S-279 Full Threaded Machinery Shoulder Eye Bolt, 1/2-13, 1.53 in L Shank, Forged Steel
SKU: CRO9900217
Manufacturer Part Number: 9900217
UPC: 662547002178
Features
- Working load limits shown are for in-line pull
- Fatigue rated at 1-1/2 times the working load limit at 20000 cycles
- Recommended for in-line pull
- Importantly, these bolts meet other critical performance requirements including fatigue life, impact properties and material traceability
Specification
| Material | Forged Steel |
|---|---|
| Measurement System | Imperial |
| Overall Length | 3.7 in |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | CRO9900217 |
| Series | S-279 |
| Shank Length | 1.53 in |
| Thread Type | UNC |
| Type | Full Threaded Machinery Shoulder |
| Working Load | 2600 lb |
| Standard & Approvals | ASME B30.26 |
