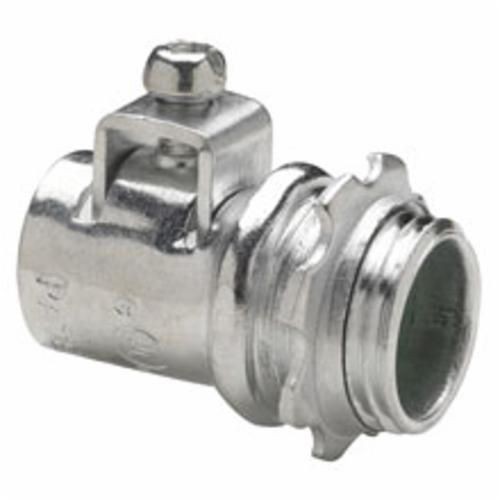

EATON Crouse-Hinds ACB200 Straight Cable Connector, 2 in Trade, 1.76 to 2.45 in Cable Openings, Steel, Electro-Plated Zinc
EATON Crouse-Hinds ACB200 Straight Cable Connector, 2 in Trade, 1.76 to 2.45 in Cable Openings, Steel, Electro-Plated Zinc
SKU: CHNACB200
Manufacturer Part Number: ACB200
UPC: 784564002808
Documents
Features
- Dual gripping saddle design on the connector safely secures cable or conduit in place and prevents loosening from vibration
- Insulated throat provides a smooth pulling surface that won't strip cable
- Angled teeth on locknut bite into enclosure, preventing loosening from vibration
- Tri-head set-screw may be installed using a slotted, Phillips® or Robertson head screwdriver
- Steel connector is zinc electroplated for corrosion-resistance
- Thermoplastic insulated throat
Specification
| Material | Steel |
|---|---|
| Series | ACB |
| Trade Size | 2 in |
| Type | Straight |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, CE EN 60947-5-1, 60947-5-5, CSA C22.2 No. 14 LR68551 Certified, UL 508 131568 |
| Dimensions | 3 in W |
| Cable Openings | 1.76 to 2.45 |
| Cable Type | Type AC/MC/MCI-A/FMC |
| Finish | Electro-Plated Zinc |
