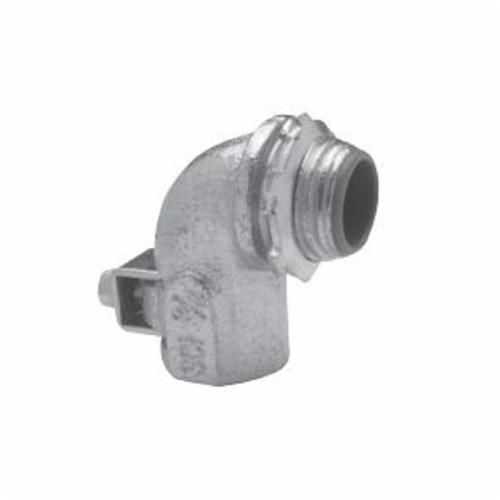

Crouse-Hinds ACB5090 Corrosion-Resistant Conduit Connector, 1/2 in Trade, 0.52 to 0.92 in Cable Openings, Steel, Electro-Plated Zinc

Selected ACB5090Crouse-Hinds ACB5090 Corrosion-Resistant Conduit Connector, 1/2 in Trade, 0.52 to 0.92 in Cable Openings, Steel, Electro-Plated Zinc
ACB5090Crouse-Hinds ACB5090 Corrosion-Resistant Conduit Connector, 1/2 in Trade, 0.52 to 0.92 in Cable Openings, Steel, Electro-Plated Zinc

Documents

Features

  • Dual gripping saddle design on the connector safely secures cable or conduit in place and prevents loosening from vibration
  • Insulated throat provides a smooth pulling surface that won't strip cable
  • Angled teeth on locknut bite into enclosure, preventing loosening from vibration
  • Tri-head set screw may be installed using a slotted, Phillips or Robertson head screwdriver
  • Steel connector is zinc electroplated for corrosion resistance

Specification

Material
Steel
Trade Size
1/2 in
Finish
Electroplated Zinc
Cable Type
Armored/Metal Clad
Cable Openings
0.52 to 0.92
Angle
90
Dimensions
1-1/4 in Dia x 2-1/4 in W x 2-1/8 in H
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, UL File No. E-19188, cUL Listed
Application
Used to connect armored cable, metal clad cable or flexible metallic to a box or enclosure
