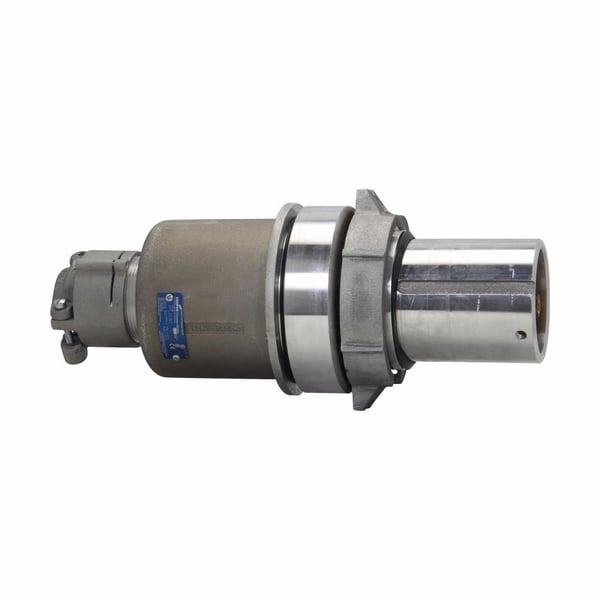

Crouse-Hinds Arktite® AP20467 AP Series Grounding Style 2 Heavy Duty Watertight Weatherproof Mating Plug, 600 VAC/250 VDC, 200 A, 4 Poles, 3 Wires, Natural

Selected IDW IMAGE 5cd8082a35908cad4921510d01bd06c2f56c71a0775d4663fae195b824795298
IDW IMAGE 5cd8082a35908cad4921510d01bd06c2f56c71a0775d4663fae195b824795298

Documents

Short Description

Crouse-Hinds series Arktite plugs and receptacles are used to supply power to portable electrically operated devices, such as motor generator sets, compressors, heating and cooling units, welders, conveyors, lighting systems and similar equipment. Also used where temporary power is needed, such as at trailers, building units, heavy machinery or wherever electrical loads must be quickly disconnected from power source.

Features

  • Grounding contact wire terminators will accommodate ground wire of same size as phase wire
  • Spring band contact design provides multiple points of electrical contact, improves electrical reliability and significantly reduces effort required for insertion and withdrawal
  • Crimp/solder type contacts are standard
  • Larger wire well size connectors will interchange with connectors of other wire well size of same amperage and contact configuration
  • Self-closing spring doors on receptacles and cord connectors provide environmental sealing
  • Threaded nuts provide positive plug retention
  • Two piece plug and cord connector design provide easy installation
  • For disconnect use only
  • Special polarity

Specification

NEMA Rating
NEMA 3R/4
Color
Natural
Horsepower
150 hp
Voltage Rating
600 VAC/250 VDC
Amperage Rating
200 A
Number Of Poles
4
Dimensions
6-3/4 in Dia x 14-3/4 in L
Frequency Rating
50 to 400 Hz
Type
Grounding Style 2 Heavy Duty Watertight Weatherproof
Number of Wires
3
Material
Copper-Free Aluminum
Series
AP Series
Terminal Type
Crimp/Pressure/Solder
