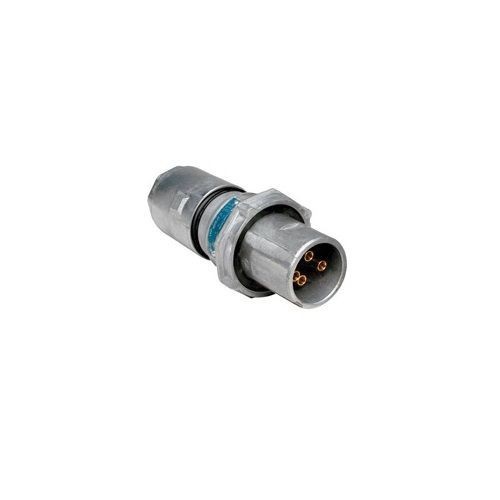

Crouse-Hinds Arktite® APJ3475 Grounding Style 1 Heavy Duty Watertight Weatherproof Mating Plug, 600 VAC/250 VDC, 100 A, 4 Poles, 4 Wires, Natural
Crouse-Hinds Arktite® APJ3475 Grounding Style 1 Heavy Duty Watertight Weatherproof Mating Plug, 600 VAC/250 VDC, 100 A, 4 Poles, 4 Wires, Natural
SKU: CHNAPJ3475
Manufacturer Part Number: APJ3475
UPC: 782274047607
Documents
Features
- Circuit breaking plugs through 100 A rating may be disconnected under load 150 to 400 A units are for service disconnect use only
- Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate and provides for positive polarization
- Extra wide electrical spacing allows for maximum safety
- Insulator materials are the result of intensive testing, selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance
- A variety of installations is possible due to the availability of several types of back boxes
- Designed to withstand rough usage and the effects of adverse environments
Specification
| Frequency Rating | 50 to 400 |
|---|---|
| Grade | Industrial |
| Material | Cast Aluminum |
| Number Of Poles | 4 |
| Number of Wires | 4 |
| Series | APJ |
| Type | Grounding Style 1 Heavy Duty Watertight |
| Voltage Rating | 600 VAC/250 VDC |
| Application | To supply power to portable electrically operated devices such as motor generator sets, compressors, Heating and cooling units, welders, conveyors, lighting systems and similar equipment |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 514, UL 1010, UL 1682, CSA C22.2 |
| Amperage Rating | 100 A |
| Dimensions | 4-1/8 in Dia x 10-1/8 in L |
| Color | Natural |
| Enclosure | NEMA 4 |
