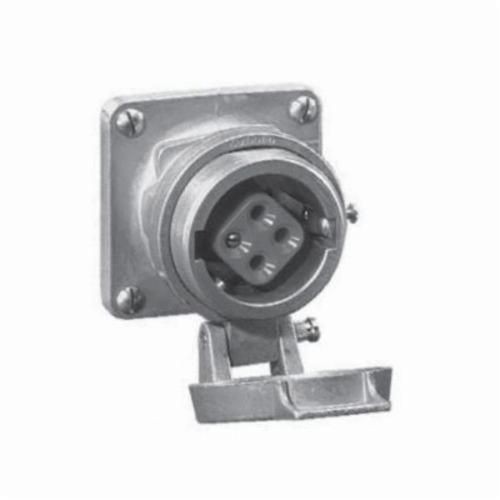

EATON Crouse-Hinds Arktite® AR1542 Grounding Style 2 Heavy Duty Threaded Cap Pin and Sleeve Receptacle Housing, 600 VAC/250 VDC, 150 A, 4 Poles, 3 Wires, Cast Aluminum
EATON Crouse-Hinds Arktite® AR1542 Grounding Style 2 Heavy Duty Threaded Cap Pin and Sleeve Receptacle Housing, 600 VAC/250 VDC, 150 A, 4 Poles, 3 Wires, Cast Aluminum
SKU: CHNAR1542
Manufacturer Part Number: AR1542
UPC: 662276136625
Features
- Circuit breaking plugs through 100 A rating may be disconnected under load, 150 to 400 A units are for service disconnect use only
- Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate and provides for positive polarization
- Insulator materials are the result of intensive testing, selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance
- A variety of installations is possible due to the availability of several types of back boxes
- Designed to withstand rough usage and the effects of adverse environments
- Watertight
- NEMA 4 enclosure
- High impact strength copper free aluminum
- 0.875 to 1.7 in Dia cable
- Shell and extra pole ground
- 4 to 1 AWG (building), 4 to 2 AWG (extra flex) wire
Specification
| Grounding Style | 2 |
|---|---|
| Material | Cast Aluminum |
| Number Of Poles | 4 |
| Number of Wires | 3 |
| Type | Style 2 Heavy Duty Threaded Cap |
| Voltage Rating | 600 VAC/250 VDC |
| Application | Industrial Applications |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, UL 1203, UL 1682, UL 1686, CSA C22.2, CE Certified |
| Amperage Rating | 150 A |
| Dimensions | 5-9/16 in L x 4-1/4 in W x 4-1/4 in H |
| Color | Natural |
