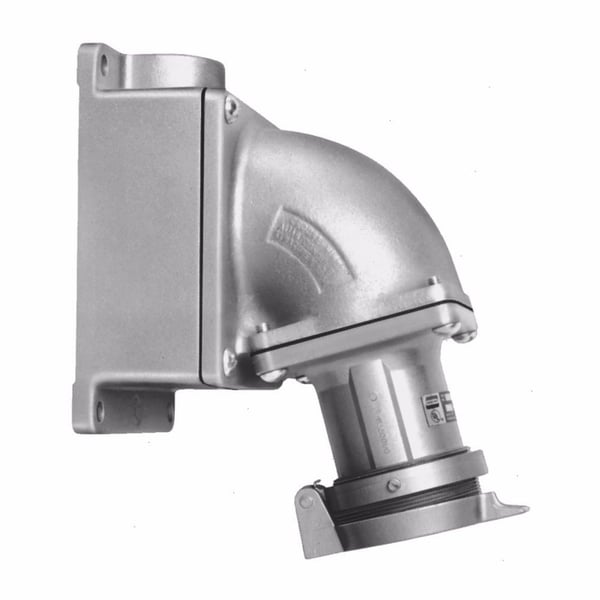

Crouse-Hinds Arktite® AREA6425 Heavy Duty Watertight Style 2 Pin and Sleeve Receptacle Assembly With AJ Back Box, Angle Adapter, 600 VAC, 250 VDC, 60 A, 4 Poles, 3 Wires, Natural

Selected AREA6425Crouse-Hinds Arktite® AREA6424 Grounding Style 2 Heavy Duty Watertight Receptacle Assembly With Spring Door, 600 VAC/250 VDC, 60 A, 4 Poles, 3 Wires, Natural
AREA6425Crouse-Hinds Arktite® AREA6424 Grounding Style 2 Heavy Duty Watertight Receptacle Assembly With Spring Door, 600 VAC/250 VDC, 60 A, 4 Poles, 3 Wires, Natural

Documents

Short Description

Crouse-Hinds series Arktite plugs and receptacles are used to supply power to portable electrically operated devices, such as motor generator sets, compressors, heating and cooling units, welders, conveyors, lighting systems and similar equipment. Also used where temporary power is needed, such as at trailers, building units, heavy machinery or wherever electrical loads must be quickly disconnected from power source.

Features

  • Receptacles accept only plug of the same amperage rating, style and number of poles, making it impossible to mismate and provides for positive polarization
  • Extra wide electrical spacing allows for maximum safety
  • Shell, extra pole grounding
  • Spring door
  • 6 to 4 AWG (building), 8 to 4 AWG (extra flex) wire
  • High impact strength copper-free aluminum

Specification

Frequency Rating
50 to 400 Hz
Hub Size
1-1/2 in
Material
Copper-Free Aluminum
NEMA Rating
NEMA 4
Number of Hubs
1
Number Of Poles
4
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
60 A
Catalog ID
CHNAREA6425
Color
Natural
Dimensions
5-7/8 in W x 8-7/8 in D x 7 in H
Enclosure
NEMA 4
Series
AREA
Terminal Type
Crimp/Solder/Pressure
Type
Heavy Duty Watertight Style 2
Voltage Rating
600 VAC, 250 VDC
Application
Industrial Facilities and Factories, Facility, Power Distribution, Control, Motor Generator Set, Compressor, Heating/Cooling Unit, Welder, Conveyor, Lighting System and Indoor/Outdoor Applications
Standard & Approvals
CE Certified, CSA C22 File No .2, UL File No. 1682, UL File No. 1686
