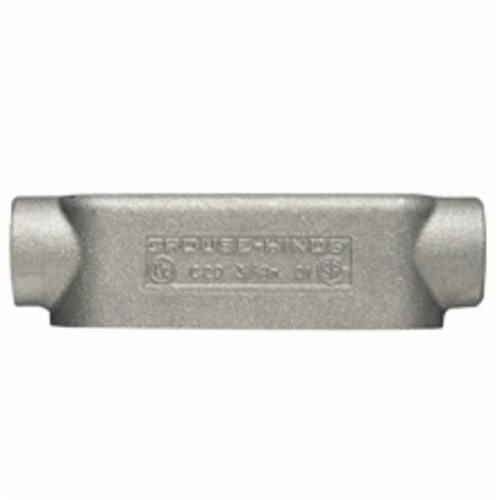

Crouse-Hinds Condulet® C59 Type-C Conduit Outlet Body, 1-1/2 in Hub, Mark 9 Form, Copper-Free Aluminum, Natural
Crouse-Hinds Condulet® C59 Type-C Conduit Outlet Body, 1-1/2 in Hub, Mark 9 Form, Copper-Free Aluminum, Natural
SKU: CHNC59
Manufacturer Part Number: C59
UPC: 782274123905
Documents
Features
- Mark 9 bodies provide more room for heavier conductors
- Conduit hubs have tapered threads and feature integral bushings for protection of wire insulation
- Self-retaining cover screws
Specification
| Hub Size | 1-1/2 in |
|---|---|
| Material | Copper Free Aluminum |
| Number of Hubs | 2 |
| Type | Type C |
| Application | For rigid conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 514B, CSA C22.2 No. 18, Federal Spec W-C-586D, NEC/CEC Certified |
| Dimensions | 8-1/4 in L x 2-1/2 in W x 2-3/4 in H |
| Connection Type | Threaded |
| Finish | Natural |
| Form | Mark 9 |
