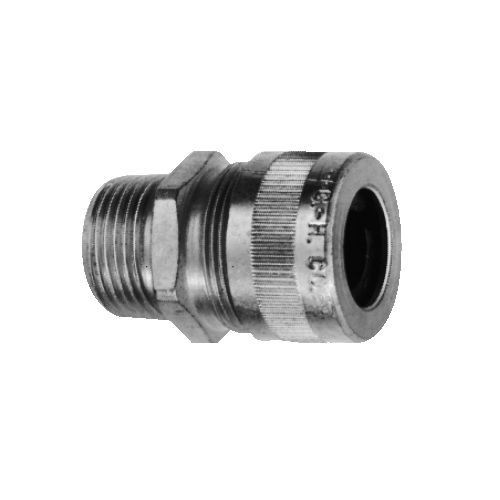

Crouse-Hinds CGB297 Straight Cable Gland Connector, 3/4 in Trade, 3/4 to 7/8 in Cable Openings, Steel, Zinc Plated

Selected FilesCHNCGB297
FilesCHNCGB297

Documents

Short Description

EATON's Crouse-Hinds series is designed to the highest standard of safety and productivity to keep people safe and plants running reliably. The more demanding the environment, the likelier you are to find EATON products at the center of operations.

Features

  • Weatherproof seal on outer sheath of cable
  • Provide means for passing a cord, cable (unarmored) or flexible conduit into an enclosure, through a bulkhead or into a rigid conduit
  • Form an environmental seal for cord or unarmored round cables, form a secure connection or termination for flexible cord, cable (unarmored), or flexible conduit
  • 1.63 in across flats
  • 1.66 in across corners
  • 1.75 in gland length
  • 0.62 in NPT thread length
  • Form C
  • Steel gland nuts and neoprene gasket
  • 3/4 in MNPT
  • Electro Zinc Plated With Chromate Coated

Specification

Material
Steel
Series
CGB
Temperature Rating
-25 to 40
Trade Size
3/4 in
Application
General-Purpose Applications
Standard & Approvals
cULus Listed, UL E23223 Listed, RoHs Compliant
Cable Type
Non-Armored/Tray
Connection Type
MNPT
Finish
Zinc Plated
Cable Openings
3/4 to 7/8
Dimensions
1-3/4 in OD
