Crouse-Hinds CGB7913 Form E Straight Cable Gland Cord Connector, 2-1/2 in Trade, 1-3/8 to 1-5/8 in Cable Openings, Aluminum/Steel, Acrylic Painted/Electro-Galvanized

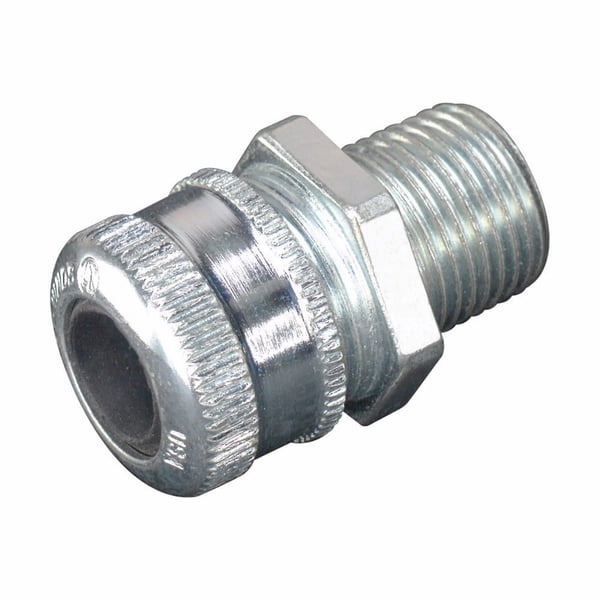

Selected CGB7920Crouse-Hinds CGB3239 Form C Straight Cable Gland Cord Connector, 1 in Trade, 7/8 to 1 in Cable Openings, Steel, Chromate Coated/Electro-Plated Zinc
CGB7920Crouse-Hinds CGB3239 Form C Straight Cable Gland Cord Connector, 1 in Trade, 7/8 to 1 in Cable Openings, Steel, Chromate Coated/Electro-Plated Zinc

Documents

Short Description

They are also listed for use with tray cable types TC, TC-ER, TC-ER-HLA, ITC, ITC-ER, ITC-HL, PLTC and PLTC-ER. When installed in accordance with NEC501.10(B)(4), CGB, CGD, CGE and CGFP non-armoured glands are suitable for use in Class I, Division 2 hazardous locations. Crouse-Hinds series CGB, CGD, CGE and CGFP non-armoured glands are installed to provide a means for passing a cord, unarmoured cable or flexible conduit into an enclosure. The glands form an environmental seal for cord or unarmoured round cables and they form a secure connection or termination for flexible cord, cable (unarmoured) or flexible conduit. These cable glands are listed for use with flexible cords, including Type S, SO, STO, ST, SJ, SJT, SJTO and SVO.

Features

  • Weatherproof seal on outer sheath of cable
  • Provide means for passing a cord, cable or flexible conduit into an enclosure, through a bulkhead or into a rigid conduit
  • Form an environmental seal for cord or unarmored round cables, form a secure connection or termination for flexible cord, cable (unarmored) or flexible conduit
  • 2.63 in L gland
  • 1 in NPT thread
  • Feraloy iron alloy gland nuts and neoprene gasket

Specification

Material
Feraloy Iron Alloy
Minimum Order Qty
1
Order Interval
1
Cable Type
Non-Armored/Tray
Connection Type
MNPT
Finish
Electro-Galvanized/Aluminum Acrylic Painted
Temperature Rating
-25 to 40 deg C
Trade Size
2-1/2 in
Standard & Approvals
Class I Division 2, cULus Listed, ETL to UL File No. 2594/2231/1998, SAE J1772, UL Listed
Application
Industrial Facilities, Factories and Other Applications
Type
Form E Straight
Series
CGB
Dimensions
3.13 in OD
Catalog ID
CHNCGB7913
Cable Openings
1-3/8 to 1-5/8 in
