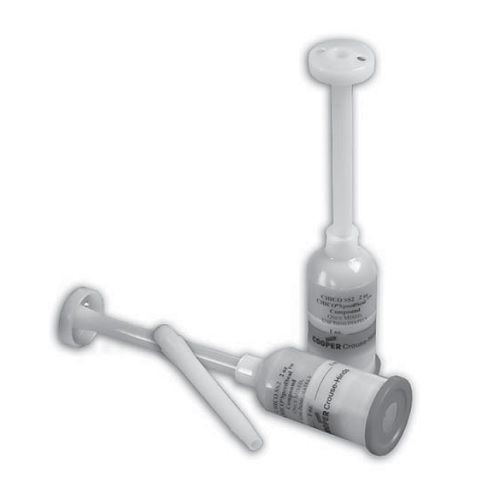

EATON Crouse-Hinds Chico® SpeedSeal™ CHICO SS2 Explosionproof Sealing Compound, 2 oz Cartridge, Gray
EATON Crouse-Hinds Chico® SpeedSeal™ CHICO SS2 Explosionproof Sealing Compound, 2 oz Cartridge, Gray
SKU: CHNCHICO-SS2
Manufacturer Part Number: CHICO SS2
UPC: 782274223100
Documents
Features
- Restricts the passage of gases, vapors or flames through the sealing fitting
- Creates a seal for class I, Division 1, Groups C, D and class II, Division 1, Groups E, F, G hazardous areas
- Installs a reliable seal in 5 min every time
- Hardens to a dense, strong mass that is suitable for class I, Division 1, Groups C, D and class II, Division 1, Groups E, F, G hazardous applications
- For use with 1/2 to 2 in EATON's Crouse-Hinds series sealing fittings only
- Packaged in a 2 oz or 6 oz pre-measured cartridge, eliminating the need for measuring before mixing
- Packaged with a screw-on nozzle for accurate dispensing
- Expands in the sealing fitting, eliminating the need to separate the individual conductors with Chico® X fiber
- Completely hardens in 20 min, simplifying use for OEMs
- Suitable for cold temperature environments without the costly need to build a temporary shelter around sealing fittings
- 230 deg C Cleveland open cup flash point
Specification
| Setting Time | 4 to 10 |
|---|---|
| Specific Gravity | 1.11 g/mL |
| Type | Explosionproof |
| Color | Gray |
| Curing Time | 20 |
| Flash Point | 230 |
| Form | Liquid |
| Container Type | Cartridge |
| Container Size | 2 |
| Composition | Urethane Polyol |
| Standard & Approvals | Class I, Division 1, Group C, D, Class II, Division 1, Group E, F, G, cUL, UL Listed |
| Application | Use to join two fittings |
