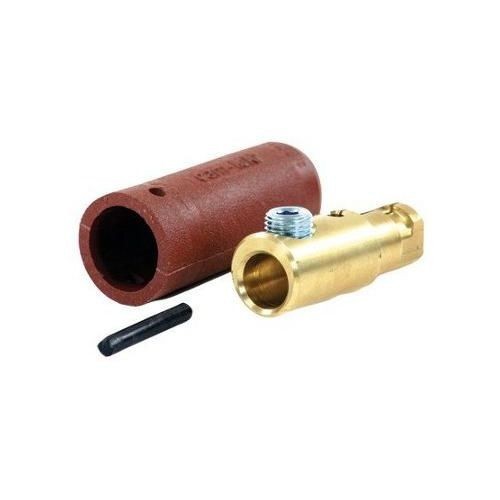

EATON Crouse-Hinds Cam-Lok™ E1012-71 F Series 1-Pole Female Plug, 120 VAC, 315 A Continuous/550 A Intermittent, 1/0 to 3/0 AWG Wire, Single Setscrew Connection
EATON Crouse-Hinds Cam-Lok™ E1012-71 F Series 1-Pole Female Plug, 120 VAC, 315 A Continuous/550 A Intermittent, 1/0 to 3/0 AWG Wire, Single Setscrew Connection
SKU: CHNE1012-71
Manufacturer Part Number: E1012-71
UPC: 662275126306
Documents
Short Description
Features
- Double cam principle provides a positive, vibration-proof connection
- Self compensating for wear
- No moving contact surfaces, eliminating arcing or burning
- Superior electro-mechanical connections
- Locked contacts will withstand a pulling force of 1000 lbs
- 1/3 of a turn assures a high pressure contact approaching 600 lb per sq-in, providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Reinforced thermoplastic insulators molded from colorfast material, color-coded for easy identification
- Accepts a wide range of cable sizes
- 0.188 in hole size
- Upto 550 A intermittent current
Specification
| Housing Material | Thermoplastic |
|---|---|
| NEMA Rating | NEMA 3 |
| Minimum Order Qty | 10 |
| Order Interval | 10 |
| Amperage Rating | 315 A Continuous/550 A Intermittent |
| Catalog ID | CHNE1012-71 |
| Color | Red |
| Connection Type | Female Set Screw |
| Contact Material | Brass |
| Dimensions | 1.19 in Dia x 3.86 in L |
| Series | F |
| Temperature Rating | -40 to 105 deg C |
| Voltage Rating | 120 VAC |
| Wire Size | 1/0 to 3/0 AWG |
| Application | For Welding Power Supplies, Distribution Panels, Patch Panels, Heat Treating and Stress Relieving |
| Standard & Approvals | OSHA Compliant |
