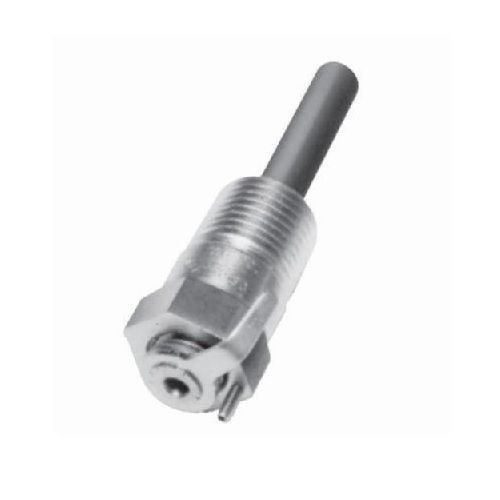

Crouse-Hinds ECD18 Combination Explosionproof Conduit Breather and Drain With Neoprene Tube, 1/2 in, 304 Stainless Steel

Selected ECD18Crouse-Hinds ECD18 Combination Explosionproof Conduit Breather and Drain With Neoprene Tube, 1/2 in, 304 Stainless Steel
ECD18Crouse-Hinds ECD18 Combination Explosionproof Conduit Breather and Drain With Neoprene Tube, 1/2 in, 304 Stainless Steel

Short Description

EATON's Crouse-Hinds Business is the world's leading provider of electrical and instrumentation products for harsh and hazardous environments. Our products perform to the highest standard of safety and reliability, keeping people safe and plants running. The more demanding the environment, the likelier you are to find our products at the very center of operations.

Features

  • At least one breather should be used with each drain
  • A breather is installed in top of enclosure or upper section of conduit system
  • A standard drain is installed in bottom of enclosure or in lower section of conduit system
  • Universal breather or drain functions as a breather when mounted at the top of an enclosure, or as a drain when mounted in the bottom of an enclosure
  • Combination breather and drain is used in those applications where the use of a top mounted breather is not practical due to limited space or in offshore and marine installations where moisture may enter the enclosure through the breather located on top of enclosure
  • Drains and breathers are installed in hubs or drilled and tapped openings
  • Class I Division 1 and 2, Group C and D, Class II Division 1, Group E, F and G, Class II Division 2, Group F and G, Class III enclosure
  • Thread-In-Thread design
  • Dust-ignitionproof

Specification

Material
304 Stainless Steel
Size
1/2 in
Type
Combination
Standard & Approvals
UL 886, UL 1203, CSAC22.2 No 30
Application
Provide ventilation to minimize condensation drain accumulated condensate
Series
ECD
