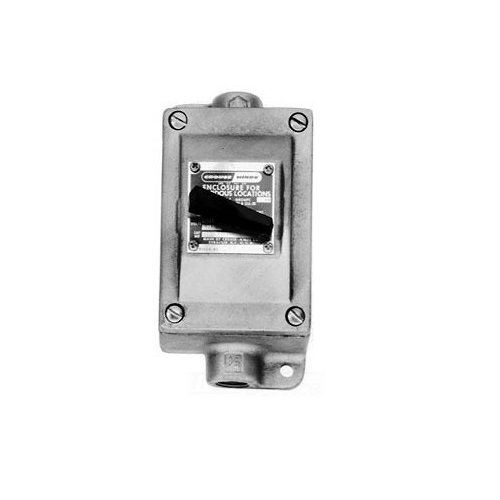

Crouse-Hinds FlexStation™ EDSC2130 1-Gang 3-Way Feed Through Factory Sealed Snap Switch Control Station With Snap Switch, (2) 3/4 in Hub, 120/277 VAC, 20 A, 1 Operator, NEMA 3/7B/7C/7D/9E/9F/9G NEMA Rating
Crouse-Hinds FlexStation™ EDSC2130 1-Gang 3-Way Feed Through Factory Sealed Snap Switch Control Station With Snap Switch, (2) 3/4 in Hub, 120/277 VAC, 20 A, 1 Operator, NEMA 3/7B/7C/7D/9E/9F/9G NEMA Rating
SKU: CHNEDSC2130
Manufacturer Part Number: EDSC2130
UPC: 782274765631
Documents
Features
- Reduce installation problems
- Eliminate external seals
- Lower installation costs
- Improve safety
- Are used with general purpose snap and pushbutton type switches
- Standard neoprene covers for front operated pushbuttons, prevents accumulation of dirt and entrance of water around operating shafts
- Mounting lugs and taper tapped hubs with integral bushings
- Large machine screws for fastening covers to bodies
- Lockout provisions on front operated pushbutton (marked "STOP" and "OFF") and selector switch covers
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Close tolerances in machining of wide, mating flanges and journalled shafts and bearings for front button operation, produces flame tightness of enclosure joints
- On enclosures with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flame tightness
- Dead end (EFS or EDS) or feed-through (EFSC or EDSC) hubs 1/2 to 1 in sizes
- When STOP is indicated, button is automatically red
- When START is indicated, button is automatically green
- Otherwise, black buttons are standard
- 1-gang
- Dust ignitionproof and explosionproof type switch
- 3/4 in hub
- Factory sealed
Specification
| Material | Feraloy® Iron Alloy |
|---|---|
| NEMA Rating | NEMA 3/7B/7C/7D/9E/9F/9G |
| Number of Operators | 1 |
| Operator Type | Front Operated Button |
| Series | EDS |
| Type | 3-Way Feed-Through |
| Voltage Rating | 120/277 VAC |
| Application | Chemical Plants, Oil, Gas Refineries, Paint, Varnish Manufacturing Plants, Gasoline Bulk Loading, Terminals, Grain Elevators and Grain Processing |
| Standard & Approvals | Class I Division 1, 2, Group B, C, D, Class II Division 1 Group E, F, G, Class II Division 2, Group F, G, Class III, UL 1203, CSA C22.2 |
| Amperage Rating | 20 A |
| Connection Type | Screw |
| Dimensions | 5-7/8 in L x 3-1/2 in W x 2-11/16 in H |
