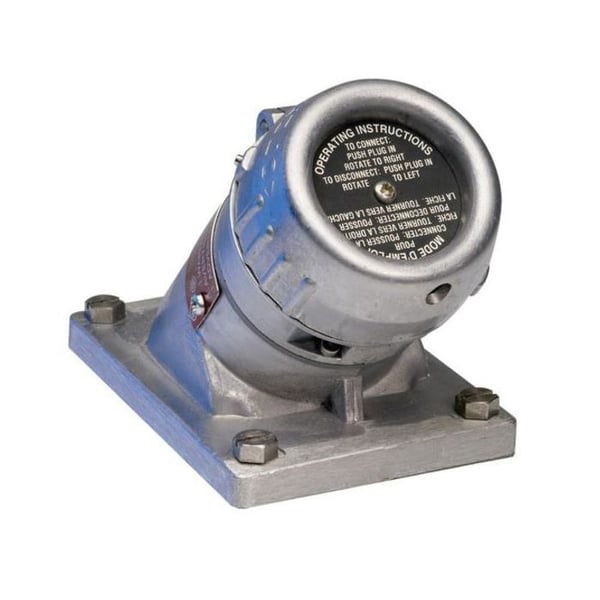

Crouse-Hinds Ark-Gard® CHENR5201 ENR Premier Explosionproof Receptacle Unit, 120 VAC, 20 A

Selected CHENR5201Crouse-Hinds Ark-Gard® CHENR5201 ENR Premier Explosionproof Receptacle Unit, 120 VAC, 20 A
CHENR5201Crouse-Hinds Ark-Gard® CHENR5201 ENR Premier Explosionproof Receptacle Unit, 120 VAC, 20 A

Documents

Features

  • Ark Gard 2 receptacle incorporates three spring-loaded slide keys that prevent the receptacle face plate from being rotated until the ENP plug is fully inserted into the receptacle. To make the connection, the ENP plug is fully inserted, and the receptacle face moved inward by pushing the plug forward. The plug is then rotated, closing the circuit. As rotation begins, the plug becomes locked in the receptacle and cannot be accidentally disengaged. In making or breaking the circuit, any resulting electrical arc is confined in the factory sealed chamber
  • Factory-sealed chamber encloses the potential arcing components between two explosionproof threaded joints. These threads are specially coated to guarantee freedom of movement, which ensures on-off action. No additional seals are required
  • One piece molded gasket seals cover plate and ENP plug when plug is inserted, providing full environmental protection at the receptacle face
  • Top-hinged cover design with 45 deg downward angle provides superior protection in damp, wet, and dirty locations
  • Field assembly is accomplished with standard tools
  • Use standard EDS back boxes
  • Copper-Free Aluminum
  • 1 in Hub
  • Explosionproof, dust-ignitionproof, raintight, wet locations

Specification

Frequency Rating
50/400
Material
Aluminum
NEMA Rating
NEMA 3/12/7BCD/9FG
Number Of Poles
3
Number of Wires
2
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=G40Xq2oRNKE
Amperage Rating
20 A
Catalog ID
CHNENR5201
Series
ENR
Type
Interlocked
Voltage Rating
125 V
Application
For male plug/receptacle
Standard & Approvals
ANSI Standard, CEC Class I, Division 1 and 2, Groups B, C, D Class II, Division 1 and 2, Group G Class III, CSA Certified C22.2, NEC, RoHS Complaint, UL 1010
