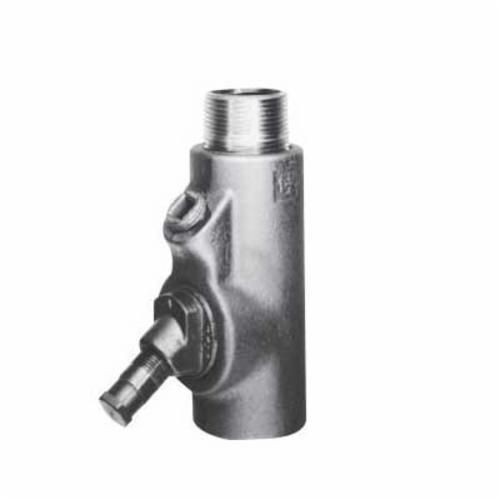

EATON Crouse-Hinds Condulet® EYD66 Conduit Sealing Fitting With Drain, 2 in MNPT x 2 in FNPT, For Use With Conduit System, Copper-Free Aluminum, Natural

Selected EYD66EATON Crouse-Hinds Condulet® EYD66 Conduit Sealing Fitting With Drain, 2 in MNPT x 2 in FNPT, For Use With Conduit System, Copper-Free Aluminum, Natural
EYD66EATON Crouse-Hinds Condulet® EYD66 Conduit Sealing Fitting With Drain, 2 in MNPT x 2 in FNPT, For Use With Conduit System, Copper-Free Aluminum, Natural

Documents

Features

  • Drain to provide continuous, automatic drainage of condensate
  • Large openings with threaded closures to provide easy access to conduit hubs for making dams
  • Integral bushings to protect conductor insulation from damage
  • Taper tapped hubs to ensure ground continuity

Specification

Material
Copper Free Aluminum
Mounting Type
Vertical
Minimum Order Qty
1
Order Interval
1
Catalog ID
CHNEYD66
Dimensions
3 in W x 6-1/4 in H
Finish
Natural
Size
2 in MNPT x 2 in FNPT
Suitable For Use With
Conduit System
Application
Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures, limit explosions to the sealed off enclosure, limit pre-compression or pressure piling in conduit systems
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, Class I, Division 1 2, Group C D, Class II, Division 1 2, Group E F G, Class III, UL 886/1203, CSA C22.2
