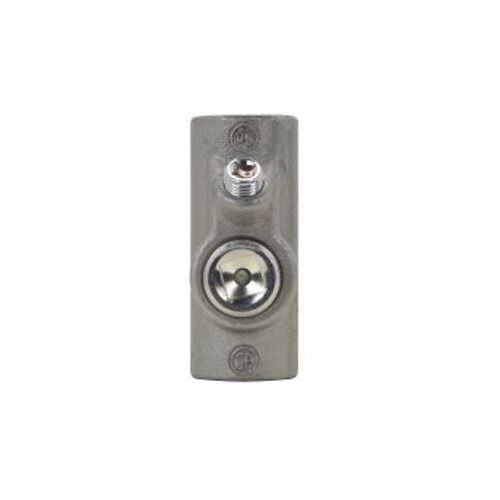

EATON Crouse-Hinds EYS21 SA Conduit Sealing Fitting, 3/4 in MNPT x 3/4 in FNPT, For Use With Conduit System, Copper-Free Aluminum

Selected EATON Crouse-Hinds EYS21 SA Conduit Sealing Fitting, 3/4 in MNPT x 3/4 in FNPT, For Use With Conduit System, Copper-Free Aluminum
EATON Crouse-Hinds EYS21 SA Conduit Sealing Fitting, 3/4 in MNPT x 3/4 in FNPT, For Use With Conduit System, Copper-Free Aluminum

Documents

Features

  • Minimum turning radius
  • Large openings with threaded closures to provide easy access to conduit hubs for making dams
  • Integral bushings in conduit hubs to protect conductor insulation from damage
  • Taper tapped hubs to ensure ground continuity

Specification

Material
Copper Free Aluminum
Mounting Type
Surface
Size
3/4 in MNPT x 3/4 in FNPT
Suitable For Use With
Conduit System
Application
Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures, limit explosions to the sealed off enclosure, limit pre-compression or pressure piling in conduit systems
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, NEC/CEC Certified, Class I, Division 1 2, Group A B C D, Class II, Division 1, Group E F G, Class II, Division 2, Group F G, Class III, UL 886/1203, CSA C22.2 No. 30
