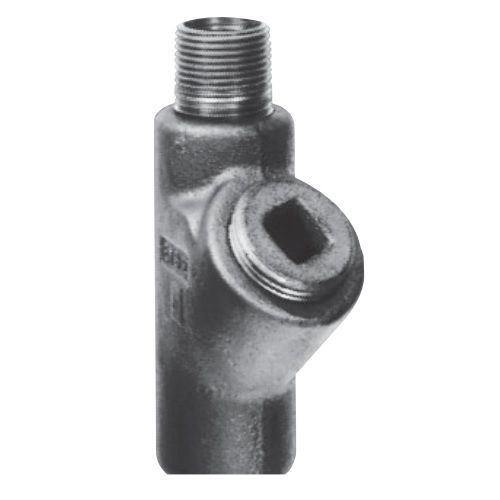

Crouse-Hinds EYS216 Male/Female Hub Conduit Sealing Fitting, 3/4 in NPT, For Use With Vertical/Horizontal Positions, Feraloy® Iron Alloy/Ductile Iron, Electro-Galvanized/Aluminum Acrylic Painted

Selected Crouse-Hinds EYS216 Male/Female Hub Conduit Sealing Fitting, 3/4 in NPT, For Use With Vertical/Horizontal Positions, Feraloy® Iron Alloy/Ductile Iron, Electro-Galvanized/Aluminum Acrylic Painted
Crouse-Hinds EYS216 Male/Female Hub Conduit Sealing Fitting, 3/4 in NPT, For Use With Vertical/Horizontal Positions, Feraloy® Iron Alloy/Ductile Iron, Electro-Galvanized/Aluminum Acrylic Painted

Short Description

EATON's Crouse-Hinds series is designed to the highest standard of safety and productivity to keep people safe and plants running reliably. The more demanding the environment, the likelier you are to find EATON products at the center of operations.

Features

  • Minimum turning radius
  • Large openings with threaded closures to provide easy access to conduit hubs for making dams
  • Integral bushings in conduit hubs to protect conductor insulation from damage
  • Taper-tapped hubs to ensure ground continuity
  • Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures
  • Limit explosions to the sealed OFF enclosure
  • 1-5/32 in turning radius
  • 2 cu-in for vertical position
  • 2 cu-in for horizontal position

Specification

Material
Feraloy® Iron Alloy/Ductile Iron
Series
EYS 116
Size
3/4 in NPT
Suitable For Use With
Vertical/Horizontal Positions
Type
Male/Female Hub
Application
For limiting precompression or pressure piling in conduit systems
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, CSA C22.2, Class I Div 1 2 Group A B C D, Class II Div 1 Group EF G, Class II Div 2 Group F G, Class III Enclosure, UL 886
Dimensions
1-1/4 in W x 3-11/16 in H
Finish
Electro-Galvanized/Aluminum Acrylic Painted
