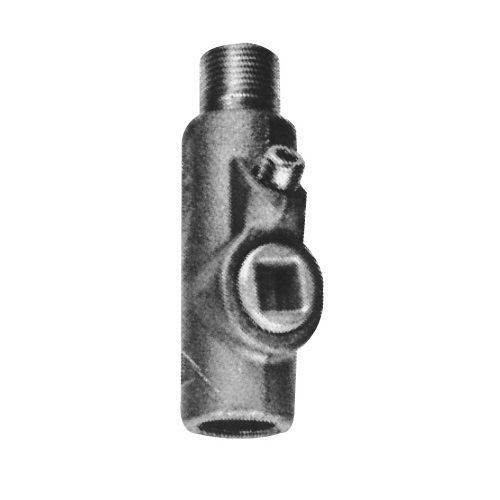

EATON Crouse-Hinds EYS616 Conduit Sealing Fitting, 2 in MNPT x 2 in FNPT, For Use With Conduit System, Ductile Iron/Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized

Selected EATON Crouse-Hinds EYS616 Conduit Sealing Fitting, 2 in MNPT x 2 in FNPT, For Use With Conduit System, Ductile Iron/Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
EATON Crouse-Hinds EYS616 Conduit Sealing Fitting, 2 in MNPT x 2 in FNPT, For Use With Conduit System, Ductile Iron/Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized

Documents

Features

  • Minimum turning radius
  • Large openings with threaded closures to provide easy access to conduit hubs for making dams
  • Integral bushings in conduit hubs to protect conductor insulation from damage
  • Taper tapped hubs to ensure ground continuity

Specification

Material
Ductile Iron/Feraloy® Iron Alloy
Mounting Type
Surface
Minimum Order Qty
1
Order Interval
1
Catalog ID
CHNEYS616
Finish
Electrogalvanized/Aluminum Acrylic Painted
Size
2 in MNPT x 2 in FNPT
Suitable For Use With
Conduit System
Application
Restrict the passage of gases, vapors or flames from one portion of the electrical installation to another at atmospheric pressure and normal ambient temperatures, limit explosions to the sealed off enclosure, limit pre-compression or pressure piling in conduit systems
Standard & Approvals
ARRA, Buy American Act, RoHS Compliant, NEC/CEC Certified, Class I, Division 1 2, Group B C D, Class II, Division 1 2, Group E F G, Class III, UL 886/1203, CSA C22.2
