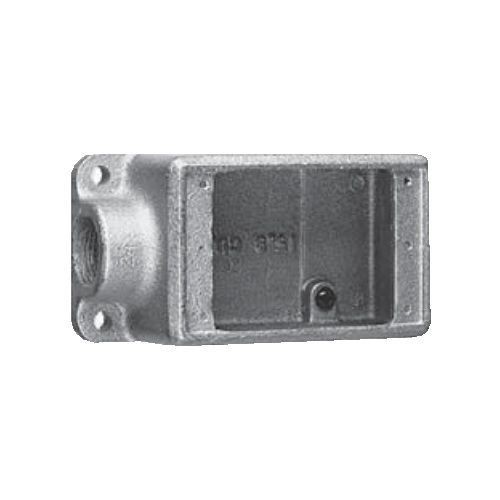

EATON Crouse-Hinds Condulet® FS2 1-Outlet Shallow Device Box With Mounting Lug, 3/4 in NPT Trade, 1 Gang, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
EATON Crouse-Hinds Condulet® FS2 1-Outlet Shallow Device Box With Mounting Lug, 3/4 in NPT Trade, 1 Gang, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
SKU: CHNFS2
Manufacturer Part Number: FS2
UPC: 782274405902
Documents
Short Description
Features
- Internal green grounding screw - standard
- Suitable for use in wet locations when used with gasketed covers
- Mounting lugs standard on most boxes
- Tapered threaded hubs (NPT) with integral bushing
- Available for surface mounting (with mounting lugs) or flush mounting (without mounting lugs) as listed
- Available as shallow (FS) or deep (FD) configuration
- Ample wiring room provided in either FS or FD configuration
- Wide selection of surface or flush covers available in three materials
- Covers for flush mounting extend to conceal the rough plaster line
- Available in single gang and multi-gang configurations with hubs and as blank bodies for drilled and tapped openings
- (1) end cable entry
- Accommodate wiring devices
- Act as pull boxes for conductors in a conduit system
- Provide openings to make splices and taps in conductors
- Provide access to conductors for maintenance and future system changes
- Connect conduit sections
Specification
| Material | Feraloy® Iron Alloy |
|---|---|
| Mounting Type | Flush |
| Number of Gangs | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | CHNFS2 |
| Dimensions | 2-3/4 in W x 1-7/8 in D x 5-5/32 in H |
| Finish | Electro-Galvanized |
| Series | FS Series |
| Suitable For Use With | IMC/Rigid Conduit |
| Trade Size | 3/4 in NPT |
| Type | 1-Outlet Shallow |
| Application | For providing openings to make splices and taps in conductors |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, UL 514, ANSI C33.84, CSA C22.2 No. 18, Federal Specification W-C-5860 |
| Includes | Mounting Lugs |
