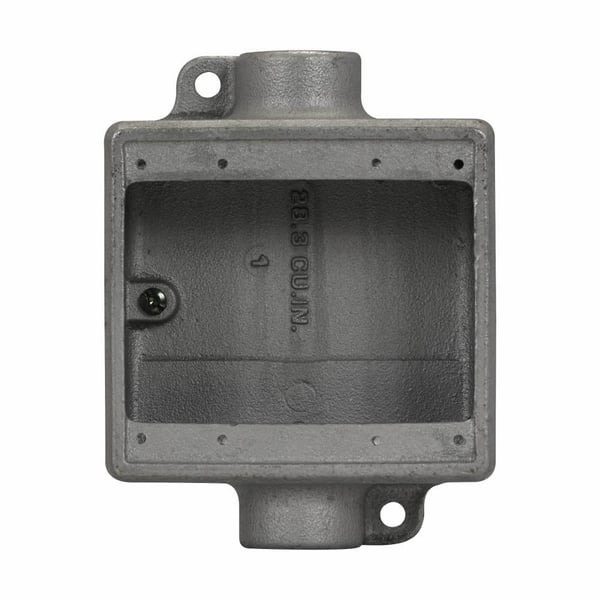

EATON Crouse-Hinds Condulet® FSC12 Type FSC Shallow Device Box With Mounting Lug and Ground Screw, Feraloy® Iron Alloy, 2 Gangs, 2 Outlets, 1 Knockout, 4-5/8 in W x 1-7/8 in D x 6-1/16 in H

Selected IDW IMAGE 38f28b7c24f9af042fa7fe685153f62294d6d0b1223001db6f07914cbc77392b
IDW IMAGE 38f28b7c24f9af042fa7fe685153f62294d6d0b1223001db6f07914cbc77392b

Documents

Short Description

Crouse-Hinds series FS and FD device boxes are installed in non-hazardous area conduit systems to accommodate wiring devices, act as pull boxes or provide openings for taps and splices. They are suitable for use in wet locations when used with gasketed covers. FS and FD device boxes are available in two box depths with a wide variety of gang configurations, hub configurations and hub sizes. They are manufactured in cast iron, aluminum, stainless steel and malleable iron. Malleable iron boxes are also available with a hot dip galvanized finish for added corrosion protection against road salt and other harsh environmental factors.

Features

  • Internal green ground screw standard on boxes
  • Suitable for wet locations when used with gasketed covers
  • Mounting lugs standard on most box
  • Tapered threaded hubs (NPT) with integral bushing
  • Ample wiring room provided in either FS/FD configuration
  • Covers for flush mounting extend to conceal the rough plaster line
  • Single gang and multi-gang configurations with hubs and as blank bodies for drilled and tapped openings
  • Accommodate wiring devices
  • Act as pull boxes for conductors in a conduit system
  • Provide openings to make splices and taps in conductors
  • Provide access to conductors for maintenance and future system changes
  • Connect conduit sections

Specification

Hub Style
Threaded
Material
Feraloy® Iron Alloy
Finish
Electro-Galvanized
Type
Type FSC Shallow
Series
FS Series
Knockout Size
1/2 in
Mounting Type
Surface
Number of Knockouts
1
Dimensions
4-5/8 in W x 1-7/8 in D x 6-1/16 in H
Number of Outlets
2
Number of Gangs
2
Cable Entry Size
(1) Each Side
Hub Size
1/2 in
