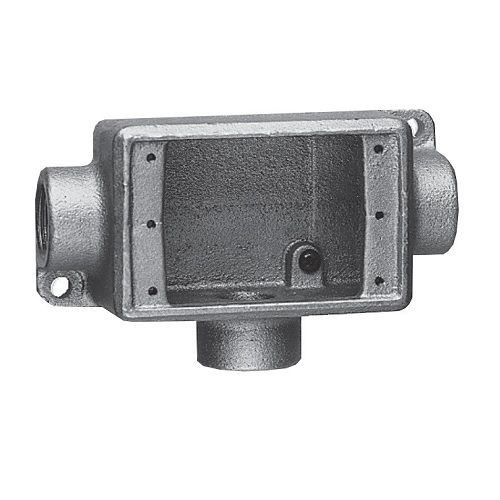

EATON Crouse-Hinds Condulet® FSCT2 3-Entry Shallow Tee Device Box, 3/4 in Trade, 1 Gang, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
EATON Crouse-Hinds Condulet® FSCT2 3-Entry Shallow Tee Device Box, 3/4 in Trade, 1 Gang, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
SKU: CHNFSCT2
Manufacturer Part Number: FSCT2
UPC: 782274415000
Short Description
Features
- Internal green ground screw standard on boxes
- Suitable for use in wet locations when used with gasketed covers
- Mounting lugs standard on most boxes
- Tapered threaded hubs (NPT) with integral bushing
- Available for surface mounting (with mounting lugs) or flush mounting (without mounting lugs) as listed
- Available as shallow (FS) or deep (FD) configuration
- Ample wiring room provided in either FS or FD configuration
- Wide selection of surface or flush covers available in three materials
- Covers for flush mounting extend to conceal the rough plaster line
- Available in single gang and multi-gang configurations with hubs, and as blank bodies for drilled and tapped openings
- (1) side/(1) each end cable entry
- Accommodate wiring devices
- Act as pull boxes for conductors in a conduit system
- Provide openings to make splices and taps in conductors
- Provide access to conductors for maintenance and future system changes
- Connect conduit sections
- Electro galvanized/Aluminum Acrylic Painted finish
Specification
| Hub Size | 3/4 in |
|---|---|
| Hub Style | NPT |
| Material | Feraloy Iron Alloy |
| Mounting Type | Surface |
| Number of Gangs | 1 |
| Number of Knockouts | 2 |
| Number of Outlets | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | CHNFSCT2 |
| Dimensions | 3-5/8 in W x 1-7/8 in D x 6-1/32 in H |
| Finish | Electro Galvanized |
| Series | FSCT |
| Shape | Shallow |
| Trade Size | 3/4 in |
| Application | For use with threaded rigid/IMC conduit |
| Standard & Approvals | UL 514, ANSI C33.84, CSA C22.2 No. 18, Federal Specification W-C-5860, RoHS Compliant |
| Includes | Mounting Lugs and Internal Ground Screw |
