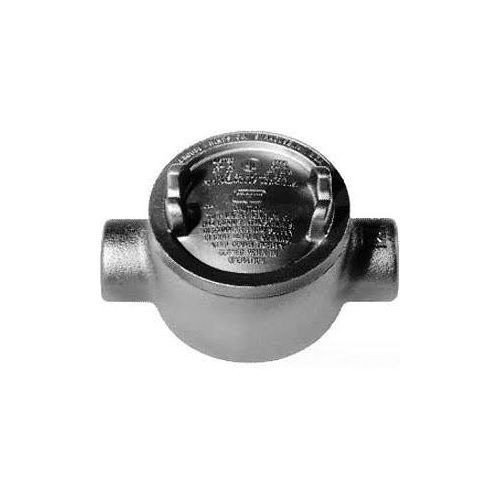

EATON Crouse-Hinds Condulet® GUAC26 Type E Shape C Conduit Outlet Box With Cover, 3/4 in, 3 in Cover Opening, 13.5 cu-in Capacity, Aluminum Acrylic Painted/Electro-Galvanized
EATON Crouse-Hinds Condulet® GUAC26 Type E Shape C Conduit Outlet Box With Cover, 3/4 in, 3 in Cover Opening, 13.5 cu-in Capacity, Aluminum Acrylic Painted/Electro-Galvanized
SKU: CHNGUAC26
Manufacturer Part Number: GUAC26
UPC: 782274462301
Documents
Features
- Neoprene O-ring standard to meet NEMA 4 requirements
- Cast ears on cover to permit easy removal and tightening
- Internal green ground screw
- Four standard mounting pads except for boxes with bottom hubs
- Threaded cover openings
- Taper threaded hubs to provide grounding continuity
- Smooth integral hub bushing protects conductor insulation when pulling
- Surface covers furnished with boxes
- Cover threads are 12 pitch standard, 16 pitch on select aluminum shapes and sizes
Specification
| Material | Feraloy® Iron Alloy |
|---|---|
| Mounting Type | Pad |
| Size | 3/4 in |
| Suitable For Use With | Threaded Rigid Conduit |
| Type | Type E Shape C |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, NEC/CEC Certified, Class I, Division 1 2, Group B C D Class II, Division 1, Group E F G, Class II, Division 2, Group F G, Class III, UL 886/1203, ANSI C33.27, CSA C22.2 No. 30, NEMA/EEMAC 3, 4 |
| Application | For Wet Locations |
| Capacity | 13.5 |
| Cover Opening Size | 3 |
| Finish | Electrogalvanized/Aluminum Acrylic Painted |
