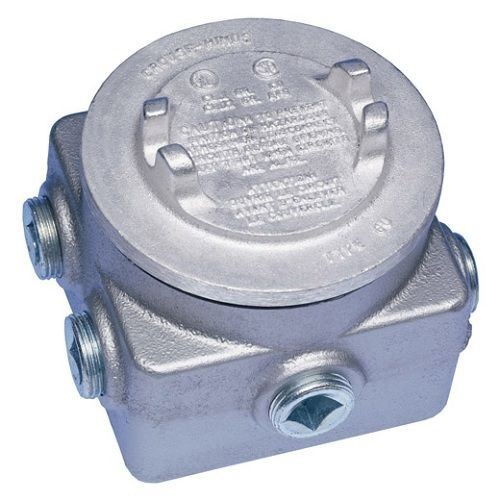

EATON Crouse-Hinds GUP215 Dust-Ignitionproof Explosionproof Raintight Junction Box, 4-1/8 in H x 4-1/8 in W x 2-3/4 in D, NEMA 4, Feraloy® Iron Alloy
EATON Crouse-Hinds GUP215 Dust-Ignitionproof Explosionproof Raintight Junction Box, 4-1/8 in H x 4-1/8 in W x 2-3/4 in D, NEMA 4, Feraloy® Iron Alloy
SKU: CHNGUP215
Manufacturer Part Number: GUP215
UPC: 782274477404
Documents
Features
- Compact design for mounting in areas with limited space
- Neoprene O-ring gasket in cover provides UL type 4 watertight rating for enclosure
- Internal green ground screw provided to terminate ground wire
- Raised ears on cover to assist in cover tightening and removal
- Body has 29 cu-in wiring capacity
- Explosionproof, dust ignitionproof and raintight construction
Specification
| Material | Feraloy® Iron Alloy |
|---|---|
| Series | GUP |
| Application | Indoor/Outdoor Applications |
| Finish | Electro-Galvanized/Aluminum Acrylic Painted |
| Length | 4/1/2008 12:00:00 AM |
| Includes | 3-3/4 in Pipe Plugs |
| Depth | 2/3/2004 12:00:00 AM |
| Cover Type | Threaded |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, CSA C22.2 No. 30, NEC Certified, UL 886, 1203 |
| Width | 4-1/8 in |
| NEMA Rating | NEMA 4 |
