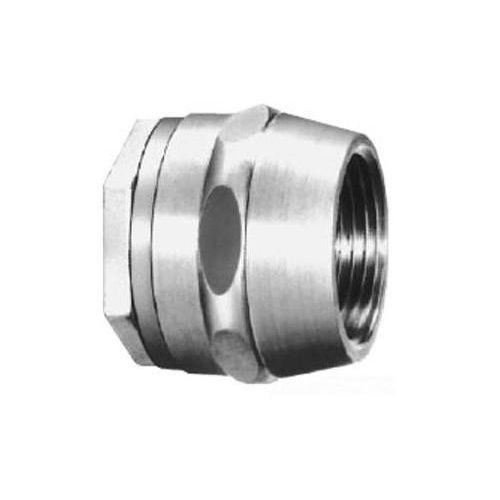

Crouse-Hinds HUB2 Space Saver Conduit Hub, 3/4 in, For Use With IMC/Rigid Conduit, Malleable Iron, Electro-Plated Zinc
Crouse-Hinds HUB2 Space Saver Conduit Hub, 3/4 in, For Use With IMC/Rigid Conduit, Malleable Iron, Electro-Plated Zinc
SKU: CHNHUB2
Manufacturer Part Number: HUB2
UPC: 782274490366
Features
- Smooth insulated throat provides easier wire pulling and protection for conductors during installation
- Neoprene sealing gasket provides a watertight seal
- Compact design permits close spacing of conduit
- Provide a convenient means for installing a threaded conduit hub on a junction box or device enclosure
- Are used to connect conduit to a sheet metal or cast enclosure
Specification
| Material | Malleable Iron |
|---|---|
| Series | HUB |
| Size | 3/4 in |
| Suitable For Use With | Rigid/IMC Conduit |
| Application | Food Processing Plants, Distilleries, Breweries, Sewage Disposal Plants, Chemical Plants, Paper Processing Mills and Refineries, Indoor and Outdoor Applications |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 514B, cUL Listed, CSA C22.2, NEC/CEC Class I, Div 2, Group A, B, C, D Per NEC 501-4(b), 502-4(a) and 503-3(a) |
| Dimensions | 1-9/16 in Dia x 1-1/8 in L |
| Finish | Zinc Electroplated |
