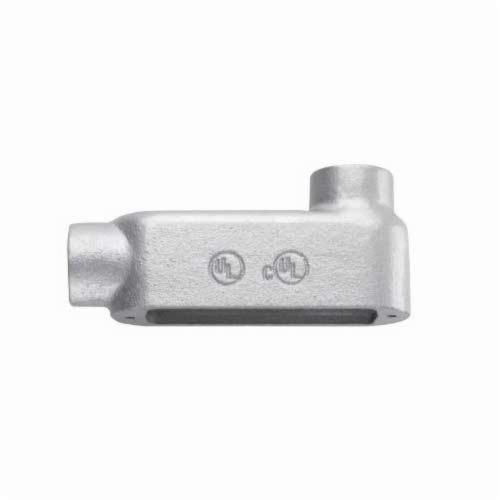

Crouse-Hinds Condulet® LB100M Type LB Conduit Outlet Body, 1 in Hub, 5 Form, 12.5 cu-in Capacity, Malleable Iron, Aluminum Acrylic Painted/Electro-Galvanized

Selected LB100MCrouse-Hinds Condulet® LB100M Type LB Conduit Outlet Body, 1 in Hub, 5 Form, 12.5 cu-in Capacity, Malleable Iron, Aluminum Acrylic Painted/Electro-Galvanized
LB100MCrouse-Hinds Condulet® LB100M Type LB Conduit Outlet Body, 1 in Hub, 5 Form, 12.5 cu-in Capacity, Malleable Iron, Aluminum Acrylic Painted/Electro-Galvanized

Documents

Short Description

Conduit outlet bodies are ideal for threaded rigid/IMC conduit systems in commercial and industrial applications. Made from durable malleable iron, the line offers convenient features such as built-in rollers to facilitate wire pulling, solid neoprene gaskets that can be easily converted to the open type, integral bushings for protection of wire insulation and sheet steel or cast malleable iron covers with self-retaining stainless steel cover screws. The bodies and covers are interchangeable with Crouse-Hinds form 35® and O-Z/Gedney® malleable iron conduit outlet bodies and are suitable for corrosive environments due to a tough electro-galvanized finish. The offering includes all standard configurations and sizes from 1/2 to 4 in. All are certified to UL and CSA standards.

Features

  • Interchangeable with Appleton form 35 conduit bodies
  • Built-in rollers on 1-1/4 to 4 in C and lb bodies to facilitate wire pulling
  • Smooth and rounded integral bushings for protection of wire insulation
  • Solid neoprene gaskets may be converted to open type by pulling out perforated center section
  • Stainless steel cover screw
  • Domed sheet steel covers provide additional cubic capacity
  • Integral gasket cover provides NEMA 4 rating

Specification

Hub Size
1 in
Material
Malleable Iron
Number of Hubs
2
Type
Type LB
Application
Rigid/IMC Conduit
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, UL E15022, UL 514B, cUL to CSA C22.2 No. 18
Dimensions
6.2 in L x 2.65 in W x 1.8 in H
Capacity
12.5
Connection Type
Threaded
Finish
Electro-Galvanized/Aluminum Acrylic Painted
Form
Form 5
