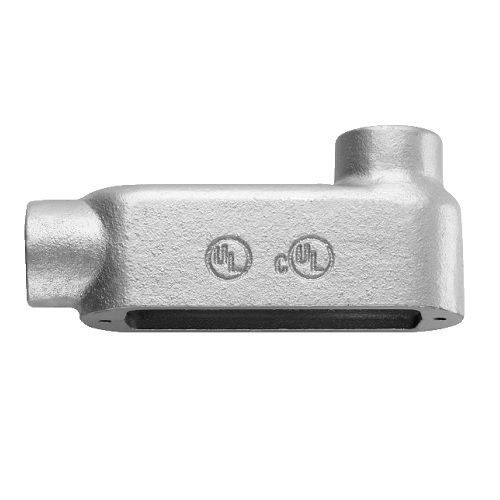

EATON Crouse-Hinds Condulet® LB25 Type LB Conduit Outlet Body, 3/4 in Hub, 5 Form, 7.3 cu-in Capacity, Die Cast Copper-Free Aluminum, Epoxy Powder Coated
EATON Crouse-Hinds Condulet® LB25 Type LB Conduit Outlet Body, 3/4 in Hub, 5 Form, 7.3 cu-in Capacity, Die Cast Copper-Free Aluminum, Epoxy Powder Coated
SKU: CHNLB25
Manufacturer Part Number: LB25
UPC: 784564140029
Documents
Features
- Die cast copper-free aluminum construction is lightweight and corrosion resistant for long, reliable service
- Epoxy powder coat finish provides additional corrosion resistance and an aesthetically pleasing appearance
Specification
| Hub Size | 3/4 in |
|---|---|
| Material | Die Cast Copper Free Aluminum |
| Number of Hubs | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 7.3 |
| Color | Gray |
| Connection Type | Threaded/Set Screw |
| Enclosure | NEMA 4 |
| Finish | Epoxy Powder Painted |
| Form | 5 |
| Type | Type LB |
| Application | For rigid/IMC/EMT conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL File No. E-15022, cUL Listed, NEC/CEC Certified |
| Includes | Hubs, Tri Head Set Screws |
| Dimensions | 4.97 in L x 1.53 in W x 2.38 in H |
| Catalog ID | CHNLB25 |
