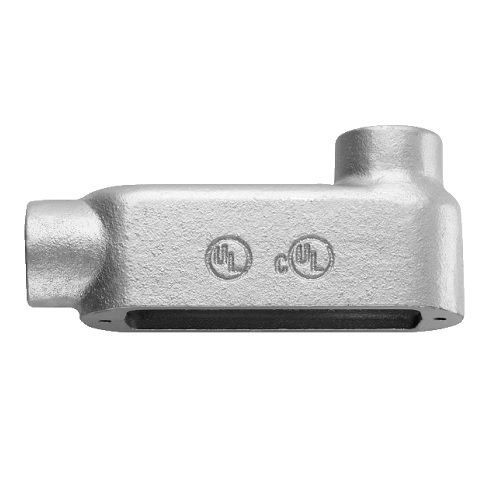

Crouse-Hinds Condulet® SnapPack™ LB37 CG Type LB Conduit Outlet Body With Cover and Neoprene Gasket, 1 in Hub, 7 Form, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
Crouse-Hinds Condulet® SnapPack™ LB37 CG Type LB Conduit Outlet Body With Cover and Neoprene Gasket, 1 in Hub, 7 Form, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
SKU: CHNLB37-CG
Manufacturer Part Number: LB37 CG
UPC: 782274141169
Documents
Features
- All SnapPack™ product is individually bar coded to facilitate more efficient inventory control
- Distributors and end users need to stock a single SKU instead of three separate component numbers - order the body, cover and gasket with one catalog number - saving transaction costs and making product selection and merchandising fast and easy
- Form 7 conduit bodies are compact with a round back design for neat, efficient installations
- Conduit hubs have tapered threads and feature integral bushings for protection of wire insulation
- Sheet steel wedge nut cover is provided with integral gasket
- The wedge nut design facilitates installation and removal
- Nuts and screws are held captive in cover
- Cover screws are stainless steel with a combination slotted and phillips head, for easy installation and superior corrosion protection
Specification
| Hub Size | 1 in |
|---|---|
| Material | Feraloy® Iron Alloy |
| Number of Hubs | 2 |
| Type | Type LB |
| Application | For rigid conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 514B, CSA C22.2 No. 18, NEC/CEC Certified |
| Dimensions | 6 in L x 2-7/8 in W x 1-3/4 in H |
| Connection Type | Threaded |
| Finish | Electro-Galvanized/Aluminum Acrylic Painted |
| Form | 7 |
