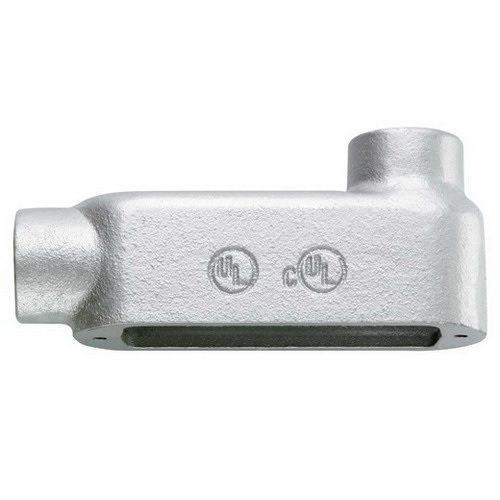

Crouse-Hinds Condulet® LB57 CG Type LB Conduit Outlet Body With Cover and Neoprene Gasket, 1-1/2 in Hub, 7 Form, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
Crouse-Hinds Condulet® LB57 CG Type LB Conduit Outlet Body With Cover and Neoprene Gasket, 1-1/2 in Hub, 7 Form, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
SKU: CHNLB57-CG
Manufacturer Part Number: LB57 CG
UPC: 782274141336
Features
- Form 7 Condulet® outlet bodies approach conduit in size for neat, compact installations
- Conduit hubs have tapered threads and feature integral bushings for protection of wire insulation
- Form 7 has exclusive snaptight and wedgenut cover attachment to provide clear, unobstructed cover opening
Specification
| Hub Size | 1-1/2 in |
|---|---|
| Material | Feraloy® Iron Alloy |
| Number of Hubs | 2 |
| Type | Type LB |
| Application | For rigid conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 514B, CSA C22.2 No. 18, NEC/CEC Certified |
| Dimensions | 7-1/8 in L x 3-11/16 in W x 2-7/16 in H |
| Connection Type | Threaded |
| Enclosure | NEMA 3R |
| Finish | Electro-Galvanized/Aluminum Acrylic Painted |
| Form | 7 |
