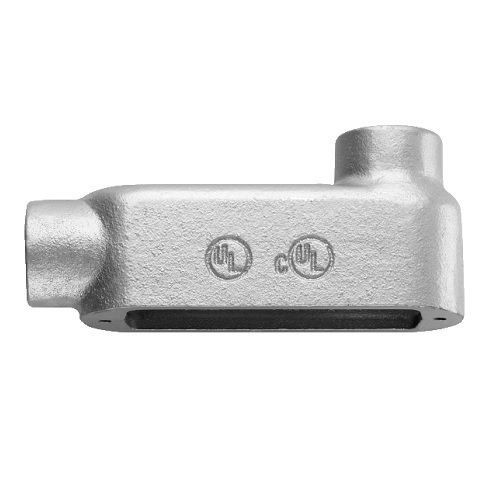

Crouse-Hinds Condulet® LB777 Type LB Conduit Outlet Body, 2-1/2 in Hub, 7 Form, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
Crouse-Hinds Condulet® LB777 Type LB Conduit Outlet Body, 2-1/2 in Hub, 7 Form, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
SKU: CHNLB777
Manufacturer Part Number: LB777
UPC: 782274517308
Documents
Features
- Form 7 Condulet® outlet bodies approach conduit in size for neat, compact installations
- Conduit hubs have tapered threads and feature integral bushings for protection of wire insulation
- Form 7 has exclusive snaptight and wedgenut cover attachment to provide clear, unobstructed cover opening
Specification
| Hub Size | 2-1/2 in |
|---|---|
| Material | Feraloy® Iron Alloy |
| Number of Hubs | 2 |
| Type | Type LB |
| Application | For rigid conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 514B, CSA C22.2 No. 18, Federal Spec W-C-586D, NEC/CEC Certified |
| Connection Type | Threaded |
| Finish | Electro-Galvanized/Aluminum Acrylic Painted |
| Form | 7 |
| Dimensions | 10-1/2 in L x 4-1/4 in W x 5-1/8 in H |
