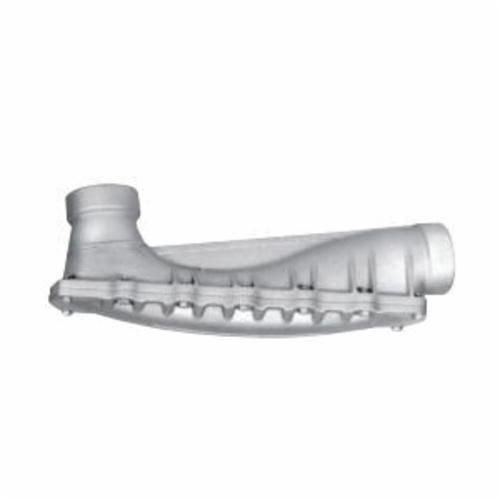

EATON Crouse-Hinds Condulet® LBD7700 Type LBD Mogul Conduit Body With Cover and Neoprene Gasket, 2-1/2 in Hub, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
EATON Crouse-Hinds Condulet® LBD7700 Type LBD Mogul Conduit Body With Cover and Neoprene Gasket, 2-1/2 in Hub, Feraloy® Iron Alloy, Aluminum Acrylic Painted/Electro-Galvanized
SKU: CHNLBD7700
Manufacturer Part Number: LBD7700
UPC: 782274518701
Features
- Cover openings on an angle, permitting conductors to be pulled straight through hubs from either direction
- Domed covers to permit easy conductor bends
- Taper tapped hubs with integral bushings
Specification
| Hub Size | 2-1/2 in |
|---|---|
| Material | Feraloy® Iron Alloy |
| Number of Hubs | 2 |
| Type | Type LBD |
| Application | For 90 deg bends in rigid conduit to act as pull outlets for conductors that are stiff due to large size or type of insulation, provide for conduit service entrance to buildings |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 514B, CSA 22.2 No. 18, Federal Spec W-C-586D, NEC/CEC Certified |
| Dimensions | 19-11/16 in L x 5-5/8 in W x 9-9/16 in H |
| Connection Type | Threaded/Set Screw |
| Finish | Electro-Galvanized/Aluminum Acrylic Painted |
| Form | Mogul |
