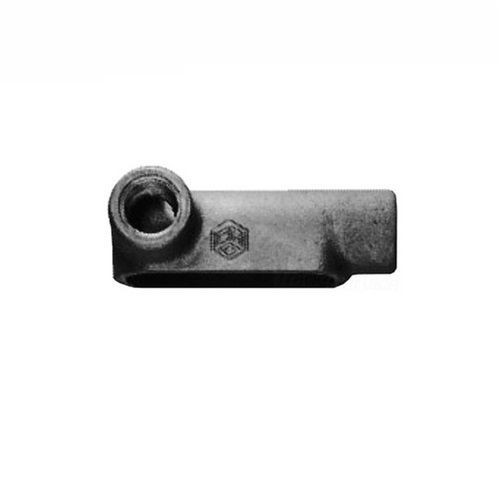

Crouse-Hinds Condulet® LL39 Type LL Conduit Outlet Body, 1 in Hub, Mark 9 Form, 12 cu-in Capacity, Copper-Free Aluminum, Natural

Crouse-Hinds Condulet® LL39 Type LL Conduit Outlet Body, 1 in Hub, Mark 9 Form, 12 cu-in Capacity, Copper-Free Aluminum, Natural
SKU: CHNLL39
Manufacturer Part Number: LL39
UPC: 782274524702
Short Description
Features
- Mark 9 bodies provide more room for heavier conductors
- Conduit hubs have tapered threads and feature integral bushings for protection of wire insulation
- Mark 9 covers feature self-retaining cover screws
- Integral gasket ON cover or solid neoprene
- Wedge nut or SNAPTIGHT cover style
- Left side access opening
- Act as pull outlets for conductors being installed
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide for access to conductors for maintenance and future system changes
Specification
| Hub Size | 1 in |
|---|---|
| Material | Copper Free Aluminum |
| Number of Hubs | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 12 |
| Catalog ID | CHNLL39 |
| Connection Type | Threaded |
| Dimensions | 6-3/32 in L x 2-5/8 in W x 1-7/8 in H |
| Enclosure | NEMA 3R |
| Finish | Natural |
| Form | Mark 9 |
| Type | Type LL |
| Application | For providing openings for making splices and taps in conductors, connecting conduit sections and rigid conduit |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, UL 514B, CSA C22.2 No. 18, Federal Specification W-C-586D |
