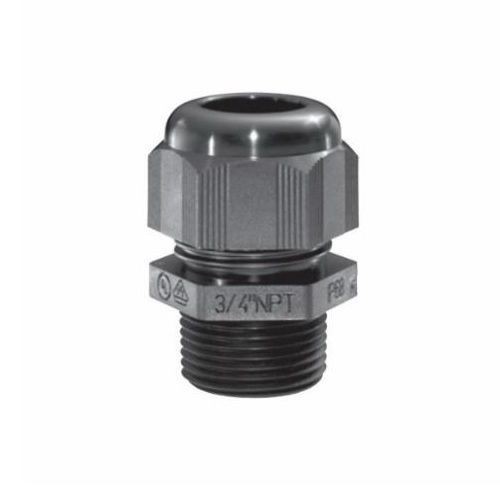

Crouse-Hinds NCG75 75 Non-Metallic Cord Grip Connector, 3/4 in Trade, 0.35 to 0.71 in Cable Openings, Polyamide 6

Selected Crouse-Hinds NCG75 75 Non-Metallic Cord Grip Connector, 3/4 in Trade, 0.35 to 0.71 in Cable Openings, Polyamide 6
Crouse-Hinds NCG75 75 Non-Metallic Cord Grip Connector, 3/4 in Trade, 0.35 to 0.71 in Cable Openings, Polyamide 6

Documents

Short Description

For use with portable cord, NCG Series Watertight Cord Grips terminate and protect conductors from mechanical damage due to vibration and movement. A neoprene bushing seals out oils, coolants, water, dust and other abusive agents. NCG Cord Grips may be used with types S, SO, STO, SJ, SJT, SJTO and SVO portable cords.

Features

  • Neoprene bushings cover a large cable range, reducing the number of different fittings required
  • Polyamide non-metallic construction stands up to most corrosive environments
  • Raintight and watertight construction for outdoor use
  • Tightening one nut creates watertight seal
  • Polyamide 6 cable gland body, lock nut and nut

Specification

Material
Polyamide 6
Minimum Order Qty
1
Order Interval
1
Cable Type
Non-Armored/Tray
Series
NCG
Temperature Rating
-25 to 40 deg C
Trade Size
3/4 in
Type
Non-Metallic
Application
Machine Tools, Motors, Transformers, Food Processing Equipment, Robotics, Air Conditioning Units, Illuminated Signs, Terminal Boxes and Control Cabinets
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, UL 508, CE Marked, CSA Certified
Catalog ID
CHNNCG7575
Cable Openings
0.35 to 0.71
