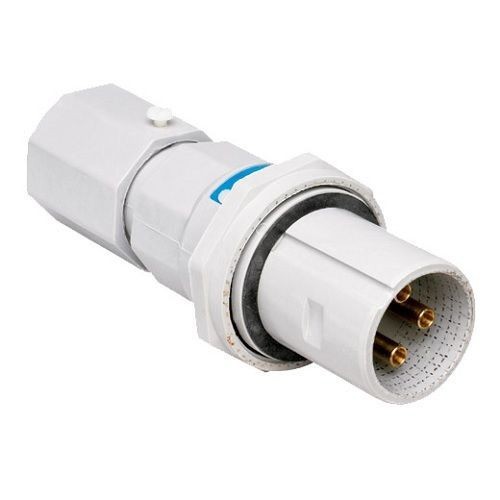

Crouse-Hinds Arktite® NPJ3484 Grounding Style 2 Heavy Duty Watertight Mating Plug, 600 VAC/250 VDC, 30 A, 4 Poles, 3 Wires, Gray
Crouse-Hinds Arktite® NPJ3484 Grounding Style 2 Heavy Duty Watertight Mating Plug, 600 VAC/250 VDC, 30 A, 4 Poles, 3 Wires, Gray
SKU: CHNNPJ3484
Manufacturer Part Number: NPJ3484
UPC: 782274746081
Documents
Features
- Watertight
- Style 2 grounded through extra pole and shell
- Plugs are molded of Krydon fiberglass-reinforced polyester material which is highly resistant to corrosion, heat, weathering and physical abuse
- Grounding contacts that make-first and break-last in the unlikely event of a keyway failure
- Split-pin contact design provides 360 degree of electrical contact
- Spring door provides environmental protection of receptacle (NEMA 4)
- Keyed for a perfect match in the molded one-piece insulator housing
- Sealing gaskets at all critical points inside arktite plugs and receptacles protect against dust, dirt, mud, water and corrosive contaminants
- Plugs can be used in both hazardous and non-hazardous areas when used with appropriately rated Arktite receptacles
- Total interchangeability with all existing arktite products for comparable ratings and configurations
- A unique patented strain relief design prevents stress from reaching wire terminations at the contacts
- 0.7 - 0.85 in cord diameter
- 10 - 6 AWG (building), 10 - 8 AWG (extra flex)
Specification
| Frequency Rating | 50 - 400 Hz |
|---|---|
| Material | Polyester |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 30 A |
| Number Of Poles | 4 |
| NEMA Rating | NEMA 3/3R/4/12 |
| Standard & Approvals | RoHS Compliant, UL/cUL Listed |
| Voltage Rating | 600 VAC/250 VDC |
| Series | NPJ |
| Dimensions | 14-3/8 in Dia x 24 in L |
| Catalog ID | CHNNPJ3484 |
