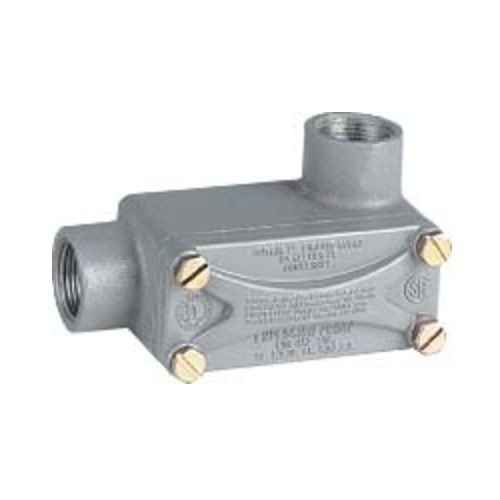

Crouse-Hinds Condulet® OELR1 OE Series Conduit Outlet Body With Cover, LR Body, 1/2 in Hub, Feraloy® Iron Alloy
Crouse-Hinds Condulet® OELR1 OE Series Conduit Outlet Body With Cover, LR Body, 1/2 in Hub, Feraloy® Iron Alloy
SKU: CHNOELR1
Manufacturer Part Number: OELR1
UPC: 782274552408
Features
- Smooth integral hub bushings to protect conductor insulation when pulling
- Accurately machined body with blind tapped screw holes
- Taper threaded hubs for ground continuity
- Most compact design of all hazardous area outlet bodies
Specification
| Hub Size | 1/2 in |
|---|---|
| Material | Feraloy® Iron Alloy |
| Number of Hubs | 2 |
| Type | Explosionproof |
| Connection Type | Threaded |
| Finish | Electro-Galvanized/Aluminum Acrylic Painted |
| Enclosure | NEMA 7/9 |
| Body Style | LR |
| Dimensions | 4-3/4 in L x 2.69 in W x 1-9/16 in H |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 886, CSA C22.2, Class I Div 1, 2 Group C, D, Class II Div 1 Group E, F, G, Class II Div 2 Group F, G, Class III, NEC/CEC Certified |
| Application | For hazardous areas to act as pulling and splice fittings, protect conductors in threaded rigid conduit, interconnect lengths of conduit, change direction of conduit, provide access for maintenance and future system changes |
| Series | OE Series |
