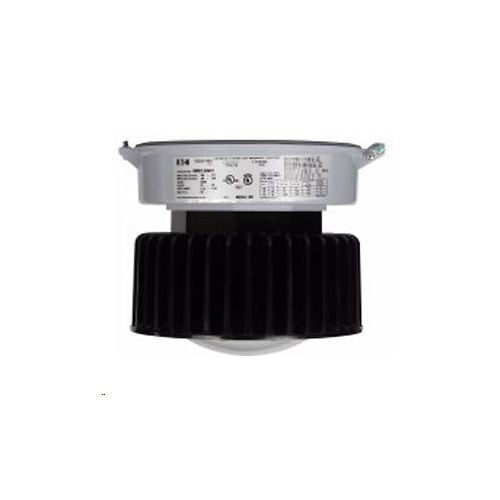

EATON Crouse-Hinds Champ® PVM5L/UNV1 Type V Optic Standard Pro High Bay Luminaire, LED Lamp, 67 W Fixture, 120 to 277 VAC/108 to 250 VDC, Corro-Free™ Epoxy Powder Coated Housing
EATON Crouse-Hinds Champ® PVM5L/UNV1 Type V Optic Standard Pro High Bay Luminaire, LED Lamp, 67 W Fixture, 120 to 277 VAC/108 to 250 VDC, Corro-Free™ Epoxy Powder Coated Housing
SKU: CHNPVM5L/UNV1
Manufacturer Part Number: PVM5L/UNV1
UPC: 662276421691
Documents
Features
- Instant illumination and restrike
- Better visibility with crisp, white light
- Cold temperature operation/no warm-up required
- Easy installation compact modular fixture attaches onto existing Champ® mounting module
- Energy efficient technology up to 64% energy savings over HID fixtures
- Contains no mercury or other hazardous substances
- Shock and vibration-resistant solid state luminaires have no filaments or glass components that could break greatly reduces the risk of premature failure
- Full cut-off with no wasted light above the fixture
- Without cover, guard
Specification
| Housing Finish | Corro-Free™ Epoxy Powder Coated |
|---|---|
| Housing Material | Die Cast Aluminum |
| Lamp Type | LED |
| Lens Type | Glass |
| Light Color | Cool White |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Average Life | 60000 hr |
| Ballast Type | 0 to 10 VDC Dimming |
| Color Rendering Index (CRI) | 70 |
| Color Temperature | 5000 K |
| Enclosure Type | NEMA 4X/IP66 |
| Series | PVM |
| Type | Type V Optic Standard |
| Voltage Rating | 120 to 277 VAC/108 to 250 VDC |
| Application | Pendant, Ceiling, Stanchion Mount Overhead Building Mounts, Processing Mills, Industrial Plants, Large Buildings, Warehouses, Heavy Industrial Plants, Refineries, Petrochemical Plants, Mining, Platforms, Loading Docks, Tunnels, Ordinary Non-Hazardous, Marine, Wet Locations, Harsh and Hose Down Environments |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, DLC Listed, NEC Certified, CEC Certified, UL 1598, UL 1598A, cUL Listed, CSA C22.2 No. 250, IEC Certified, CE Certified |
| Fixture Wattage | 67 W |
| Catalog ID | CHNPVM5L/UNV1 |
| Amperage Rating | 0.16 to 0.35 A |
| Lumens | 5335 Lumens |
| Light Output | 124 Lumens/W |
