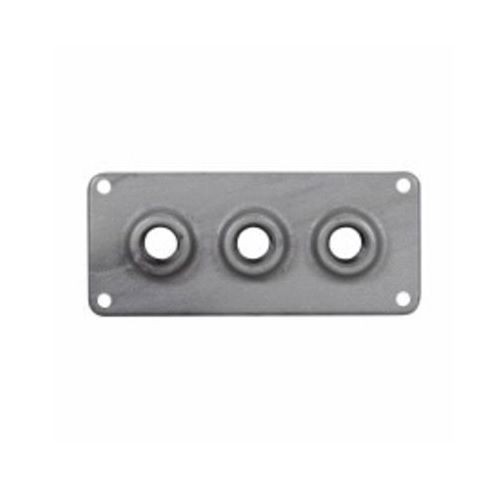

Crouse-Hinds RSP111 4E Raintight Conduit Hub Plate, (3) 1/2 in Hub, For Use With 8-1/2 x 4 in Sides of RS and RSM Series Junction Boxes, Feraloy® Iron Alloy
Crouse-Hinds RSP111 4E Raintight Conduit Hub Plate, (3) 1/2 in Hub, For Use With 8-1/2 x 4 in Sides of RS and RSM Series Junction Boxes, Feraloy® Iron Alloy
SKU: CHNRSP111
Manufacturer Part Number: RSP111
UPC: 782274598703
Documents
Features
- Act as pull box for conductors
- Provide openings and space for making splices and taps in conductors
- Provide access to conductors for maintenance and future system changes
- Provide for branch conduit runs
- Junction box bodies accept wide range of hub plates permitting varied hub arrangements and sizes
- Stocking a few components provides for many specific needs
- Future system expansion easily accomplished by substituting hub plates for currently installed plates
- Suitable for use where boxes with integral hubs cannot satisfy requirements
- Suitable for surface mounting outdoors or indoors in rigid conduit runs
Specification
| Hub Size | 1/2 in |
|---|---|
| Material | Feraloy® Iron Alloy |
| Number of Hubs | 3 |
| Suitable For Use With | 8-1/2 x 4 in Sides of RS and RSM Junction Box |
| Type | Raintight |
| Application | For branch conduit runs |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, UL 514A, CSA C22.2 No. 18 |
| Finish | Electro-Galvanized/Aluminum Acrylic Painted |
