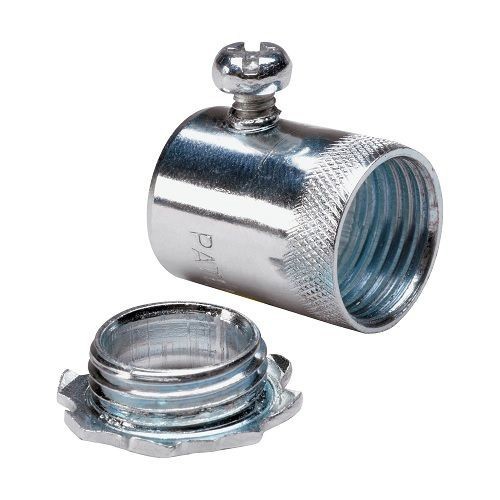

Crouse-Hinds SSBC75 Male Set Screw Straight Conduit Connector, 3/4 in Trade, For Use With Thin Wall EMT Conduit, Steel, Electro-Plated Zinc
Crouse-Hinds SSBC75 Male Set Screw Straight Conduit Connector, 3/4 in Trade, For Use With Thin Wall EMT Conduit, Steel, Electro-Plated Zinc
SKU: CHNSSBC75
Manufacturer Part Number: SSBC75
UPC: 784564002662
Documents
Features
- Tri-head screws may be installed using a slotted, Phillips or Robertson head screwdriver
- Space-saver, concrete tight, corrosion resistance
- Male threaded connection
- Male threds on locknut allow for more room inside the box
- Smooth pulling surface won't strip cable no bushing or insulation throat required
- Angled teeth on locknut bite into enclosure, preventing loosening from vibration and creating positive ground continuity
- Knurled wrenching surface on body for easy tightening
- Zinc electroplated for corrosion protection
- Set Screw
- Zinc Electroplated
Specification
| Material | Steel |
|---|---|
| Mounting Type | Screw |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | CHNSSBC75 |
| Diameter | 1.36 in |
| Dimensions | 1.47 in H |
| Finish | Zinc Plated |
| Suitable For Use With | EMT Conduit |
| Trade Size | 3/4 in |
| Standard & Approvals | E22132 UL, cUL, UL 514B Listed, Certified by UL to CSA C22.2 No.18, RoHS Compliant |
