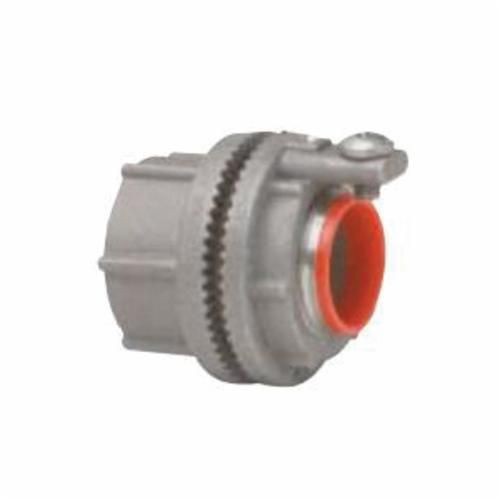

Crouse-Hinds Myers™ SSTG 1 Vibration Proof Ground Hub, 1/2 in Trade, 8 AWG Conductor, Thread Connection, 316 Stainless Steel
Crouse-Hinds Myers™ SSTG 1 Vibration Proof Ground Hub, 1/2 in Trade, 8 AWG Conductor, Thread Connection, 316 Stainless Steel
SKU: MYESSTG1
Manufacturer Part Number: SSTG 1
UPC: 784731100306
Short Description
Features
- Vibration proof
- Posi-Lok insulated throat
- Grounding screw for added safety
- Captive o-ring gasket impervious to corrosive moisture and petroleum products
- Gasket assures positive water and Dust Tight installations
- Nema 2/3/3R/4/4X/12 enclosure
- Wide range of styles, trade sizes and materials to meet customer requirements and preferences
- Multiple certifications provide users peace of mind
- Easy installation and smooth pulling service for labor savings
- Tapered female threads for rigid/IMC conduit, NPSM male threads
- Myers hubs are used in the termination of electrical circuits through wall of the enclosure
- Designed for use indoors or outdoors with rigid conduit and IMC
- Suitable for use in environmentally demanding applications, including those with the presence of chemicals, such as acetic, citric and salt water
- Suitable for use in hazardous (classified) locations
- 20 lb/100 weight
Specification
| Material | 316 Stainless Steel |
|---|---|
| Trade Size | 1/2 in |
| Standard & Approvals | UL 514B, E-59509, cUL Listed, CSA C22.2 Certified, RoHS Compliant |
| Conductor Size | 8 AWG |
| Connection Type | Threaded |
| Finish | Natural |
| Series | SSTG |
| Dimensions | 2.03 in W x 3.21 in D x 1.2 in H |
| Application | For pharmaceutical, chemical, food processing, pulp/paper and nuclear industries, solar and commercial construction use |
| Specifications | 0.591 in to 0.622 in Max ID, 55/64 in to 7/8 in Max Mounting Hole Size |
