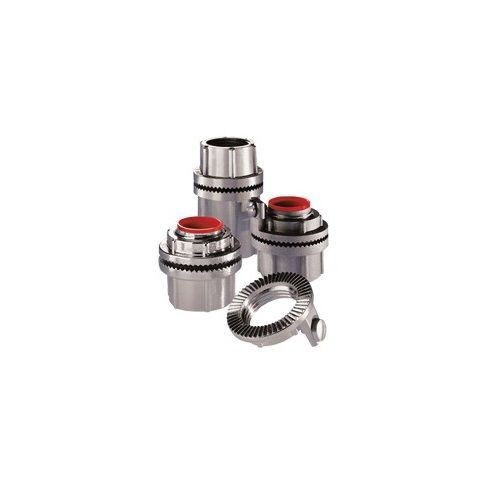

EATON Crouse-Hinds Myers™ Scru-Tite® STA 3 Basic Vibration Proof Threaded Conduit Hub, 1 in, For Use With Rigid/IMC Conduit, Aluminum, Natural
EATON Crouse-Hinds Myers™ Scru-Tite® STA 3 Basic Vibration Proof Threaded Conduit Hub, 1 in, For Use With Rigid/IMC Conduit, Aluminum, Natural
SKU: MYESTA3
Manufacturer Part Number: STA 3
UPC: 784731100177
Documents
Features
- Easy installation and smooth pulling service for labor savings
- Tapered female threads for rigid/IMC conduit, NPSM male threads
- Myers™ hubs are used in the termination of electrical circuits through wall of the enclosure
- Suitable for use in environmentally demanding applications, including those with the presence of chemicals, such as acetic, citric and salt water
- Posi-Lok insulated throat
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | MYESTA3 |
| Dimensions | 2 in Dia x 1-21/32 in L |
| Finish | Natural |
| Size | 1 in |
| Suitable For Use With | Rigid/IMC Conduit |
| Type | Vibrationproof |
| Application | Pharmaceutical, Chemical, Food Processing, Pulp/Paper, Nuclear, Solar, Commercial Construction, Indoor and Outdoor and Hazardous Location |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL 514B, cUL Listed, CSA C22.2, NEC/CEC Class I, Div 2, Class II, Div 1 and 2, Class III, Div 1 and 2, Class I, Zone 1, AEx e II, Class I, Zone 1, Ex e II, IEC, ATEX Certified |
