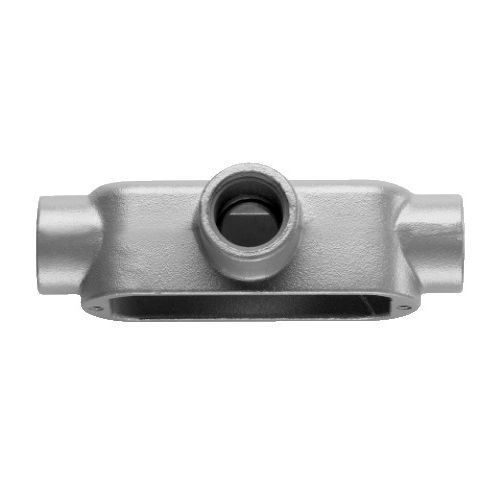

EATON Crouse-Hinds Condulet® T35 Type T Conduit Outlet Body, 1 in Hub, 5 Form, 12.2 cu-in Capacity, Die Cast Copper-Free Aluminum, Epoxy Powder Coated
EATON Crouse-Hinds Condulet® T35 Type T Conduit Outlet Body, 1 in Hub, 5 Form, 12.2 cu-in Capacity, Die Cast Copper-Free Aluminum, Epoxy Powder Coated
SKU: CHNT35
Manufacturer Part Number: T35
UPC: 784564140432
Documents
Features
- Die cast copper-free aluminum construction is lightweight and corrosion resistant for long, reliable service
- Epoxy powder coat finish provides additional corrosion resistance and an aesthetically pleasing appearance
Specification
| Hub Size | 1 in |
|---|---|
| Material | Die Cast Copper Free Aluminum |
| Number of Hubs | 3 |
| Type | Type T |
| Application | For rigid/IMC/EMT conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors |
| Standard & Approvals | ARRA, Buy American Act, RoHS Compliant, UL, cUL Listed, NEC/CEC Certified |
| Capacity | 12.2 |
| Color | Gray |
| Connection Type | Threaded/Set Screw |
| Enclosure | NEMA 4 |
| Finish | Epoxy Powder Painted |
| Form | 5 |
| Dimensions | 6.33 in L x 1.74 in W x 1.9 in H |
